RAM-B-149Z-2-237U RAM(R) ATV/UTV Handlebar U-Bolt Mount with 1/4"-20 Camera Adapter

Features

• U Bolt base fits bars 13-33mm diameter while the steel strap base fits bars from 40 to 80mm in diameter
• RAM Ball with standard 1/4"-20 camera threads matches the standard female thread on most cameras.
• RAM(R) B size double socket arm and ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum and high strength composite for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

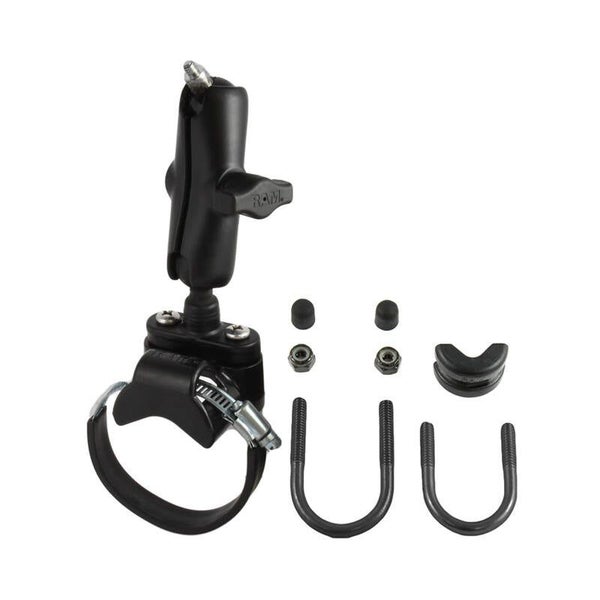

The RAM-B-149Z-2-237U consists of a steel strap base, u-bolt bases, double socket arm and 1" diameter ball with a standard 1/4"-20 threaded camera adapter.

The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allows for almost infinite adjustment and perfect viewing angles. Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATVs using the included hardware. The camera adapter attaches directly to the under-side of the camera using the industry standard threaded accessory mount.

Compatible Devices Include: Any camera featuring an industry standard female 1/4"-20 camera thread.

Strap Dimensions: 40 to 80mm (1.57" to 3.15")

U-Bolt Holding Dimensions: 12.7 to 32.75mm (0.50" to 1.25")

Arm Dimensions: Overall Length: 94mm (3.69") Socket-To-Socket Length: 76mm (3")

Material: High Strength Composite Powder Coated Marine Grade Aluminium

Ball Size: 1" Rubber Ball "B" Size

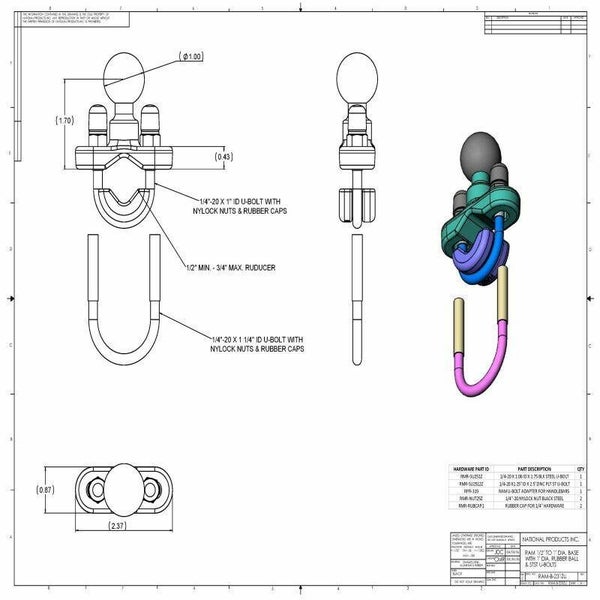

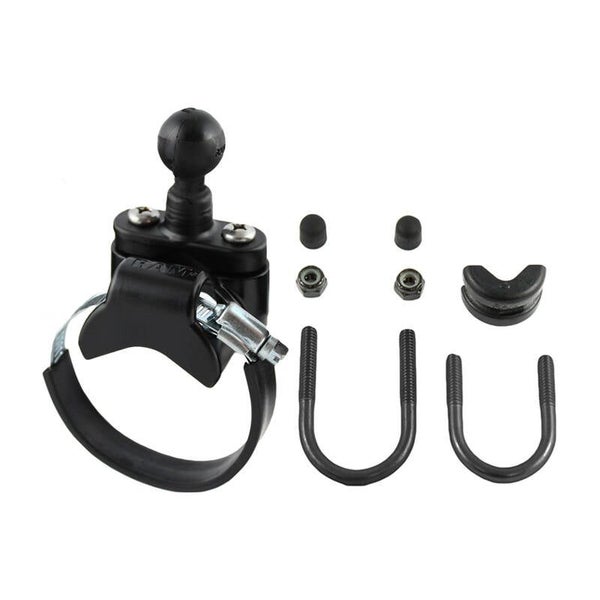

Components: RAM-B-231Z-2U RAM BASE W/ U-BOLT & UTV STRAP BASE RAP-B-237U RAM 1/4"-20 Alloy Camera Base RAM-B-201U RAM DOUBLE SOCKET ARM FOR 1" BALL
