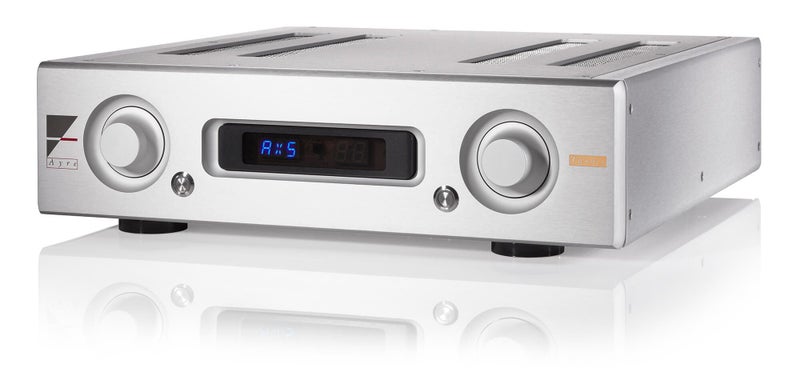

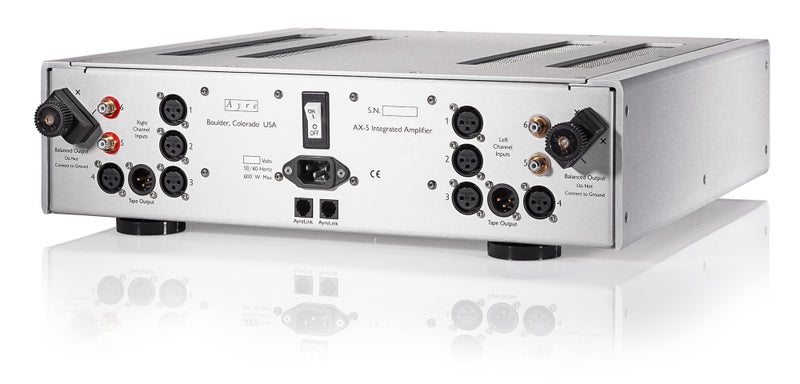

Featuring Ayre’s Double Diamond output stage, our exclusive EquiLock circuitry, and a Shallco solid-silver contact switch for gain control, this fully-discrete, fully-balanced, zero-feedback integrated amplifier provides a complete solution for your modern music system. The key to perfecting the AX-5 was to incorporate the Variable Gain Technology (VGT) of the award-winning Ayre KX-R preamplifier into the power amplifier section. The addition of ultra-transparent FET input selector switches completed the transformation of a basic power amplifier into a compact one-box solution which will become the heart of your high-performance audio system.

Features Variable Gain Transimpedance (VGT) volume circuit 46 step volume control, each of 1.5 dB Ayre’s new Diamond output stage Ayre’s exclusive Equilock circuit Linear analog power supply zero-feedback and fully-balanced discrete circuitry High-speed circuit board material Custom developed audio-grade resistors Ayre Conditioner power line RFI filter AyreLink communication system

Specifications Power Output 125 watts per channel continuous into 8 ohms 250 watts per channel continuous into 4 ohms

Gain 26 dB

Input Impedance 1 MO unbalanced inputs 2 MO balanced inputs (1 MO per phase)

Frequency Response DC – 250 kHz

Power Consumption 48 watts in low-current consumption mode 230 watts in operating mode, no signal

Dimensions 17.25? W x 18.75? D x 4.875? H (44cm x 48cm x 12cm)

Weight 48 pounds (22 kg)

We are Ayre authorized NZ dealer, all products comes with 12month warranty.
