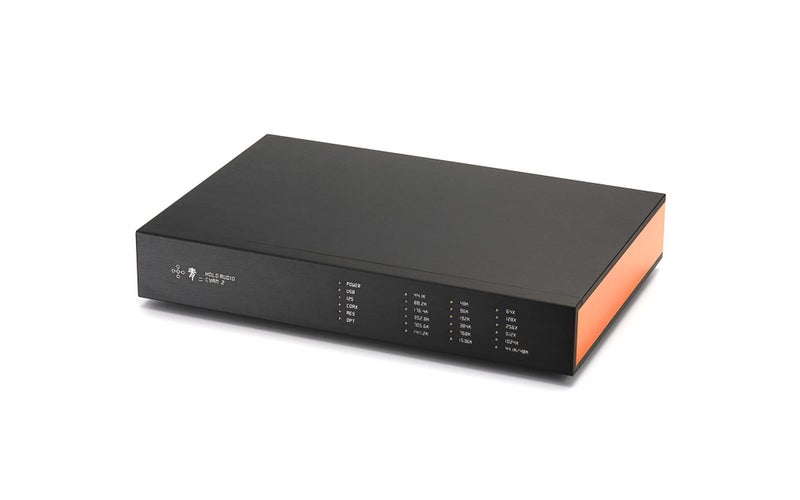

The newest HoloAudio offering is the Cyan 2 DAC. We are quite proud of the Cyan 2 and confident in saying we think you will find it most impressive as well. It’s a true balanced discrete resistor ladder DAC with both PCM and DSD support packed into a smaller footprint of desktop space. The Cyan 2 has several “trickle down” technologies from it’s bigger brothers and we are excited to introduce this product at a more affordable price.

NOTE: standard lead time 6-8 weeks

Overview

Cyan 2 “?2”, A new generation DAC of fully discrete resistor network (commonly known as R2R).

• Equipped with R2R network and vector step resistor network at the same time. The R2R network is used for primary digital-to-analog conversion of the PCM stream, and the vector step resistor network is used for primary digital-to-analog conversion of the DSD stream.
• The new generation of de-glitch technology can provide full-amplitude de-glitch without increasing the noise floor and other adverse effects.
• Based on this new generation of technology, Cyan 2 “?2” Can provide >106db SINAD and >127db dynamic range.
• USB supports sampling rates up to DSD1024 and PCM 1.536M.
• The USB interface uses proprietary firmware with ultra-low latency, a highly reliable data transmission, ideal USB eye pattern measurements that contributes to 2-4 times higher performance than official firmware.

Digital input COAXIAL, OPTICAL, AES PCM 44.1-192K (24bit) DSD 64X (DOP) USB (galvanically isolated) PCM 44.1-1.536M (32bit) DSD 64-512X (DOP) DSD 64-1024X (Native) I2S PCM 44.1-1.536M (32bit) DSD 64-1024X

Analog Output PCM 48K NOS THD+N 0.0005% @1K (-106dB) DNR -127dB Voltage Output 2.5Vrms(RCA), 5.0Vrms(XLR) DSD 128X THD+N 0.0002% @1K (-114dB) DNR -115dB Voltage Output 1.25Vrms(RCA), 2.50Vrms(XLR)
