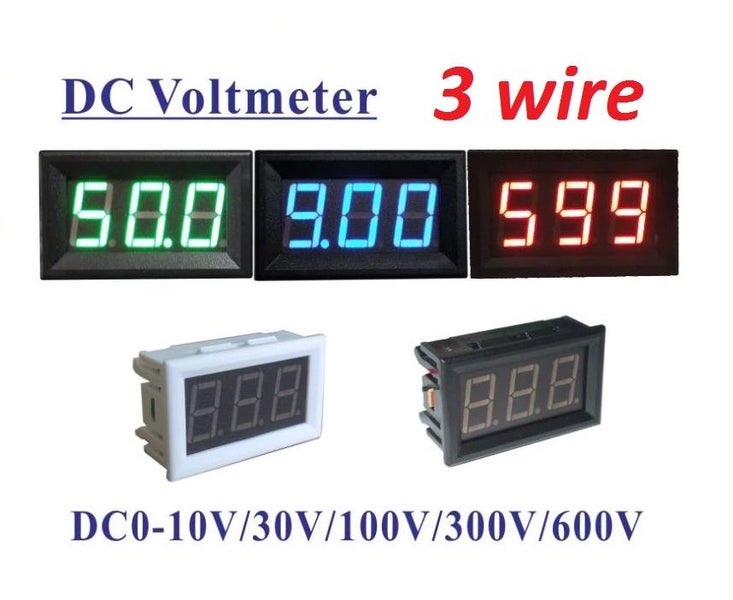

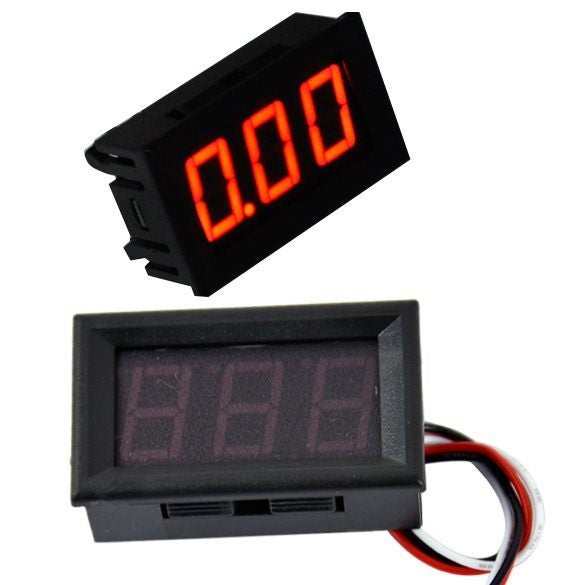

Voltmeter LED display 0-10V 30V 100V 300V 600V RED BLUE or GREEN 3 wire

Small compact voltage display for reading dc voltage Various FSD voltages available in RED BLUE or GREEN LED segments, also available in BLACK or WHITE snap in bezel

0-10V 30V 100V 300V 600V

Panel mount style, just push into a hole 45.5 x 26.5 mm

Supply voltage: 4.5 ~ 30Vdc ( Red and Black wires ) Operating Current: < 20mA Display: 0.56 " LED, Red Blue or Green segments Refresh rate: = 500mS Measurement accuracy: 1% Measurement range: (as per selection) ( Yellow and Black wires ) Minimum Supply voltage: +4 V dc Maximum operating voltage: +30 V dc ( Red and Black wires ) Operating temperature: -10 to +65 °C Operating Humidity: 10 ~ 80% (non condensing)
Reverse polarity protected.

Whats Shipped Price is per single panel meter, voltage, colour and bezel type- you choose

voltmeter, panel meter, voltage display, battery voltage meter, battery display, power supply voltage, solar panel voltage meter, battery bank voltmeter,

We dont mark up on shipping so be assured of the best deal possible, LOWEST prices on product and shipping, combined shipping welcome ! Just pay the highest courier charge of any item and the rest travel for free, any amount! We use CourierPost and deliver to PO boxes All goods located in NZ All goods come with 12 month RTB warranty Thanks
