Description

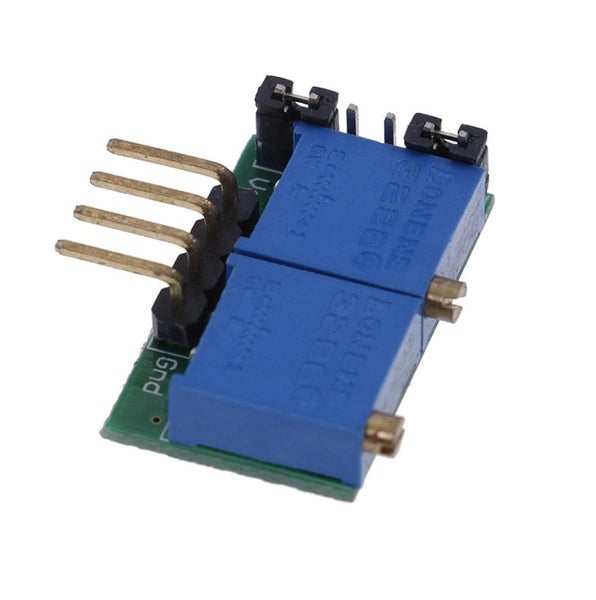

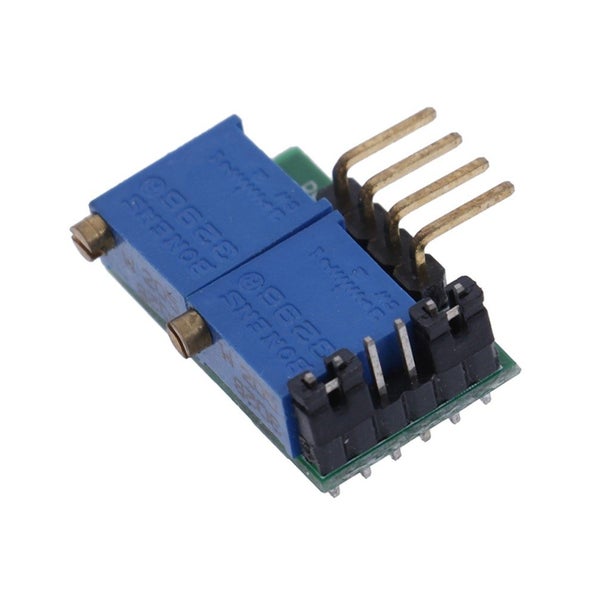

Delay Circuit Timing Switch Module 1 second ~ 9 minutess or x256 = (256 seconds ~ 38 hours)

Module parameters: Input Voltage: DC 3~27V; Drive current: 1500mA; Maximum quiescent current: 3V -- 0.22mA, 5V -- 0.45mA,12V -- 1.6mA,24V -- 4.4mA;The longer the time runs out, the quiescent current is smaller. Output high and open the two states, the output high drive current 1500mA. PCB Size: 13.5 X 21 mm It can be adjusted between a delay time of Range 1- 1 second ~ 9 minutess or x256 = 256 seconds ~ 38 hours Range 2

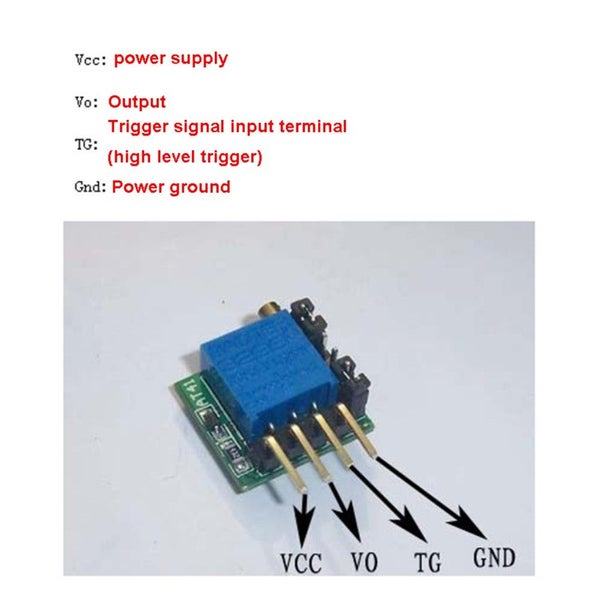

Pin Definitions: Vcc: Power Input (+), Vo: output, Vi: Re-set (connect power + to reset) (reset at high level. after reset, user can set output level at Vo), Gnd: negative (-) of power supply,

Whats shipped: 1 x Delay Circuit Timing Switch Module
