Description

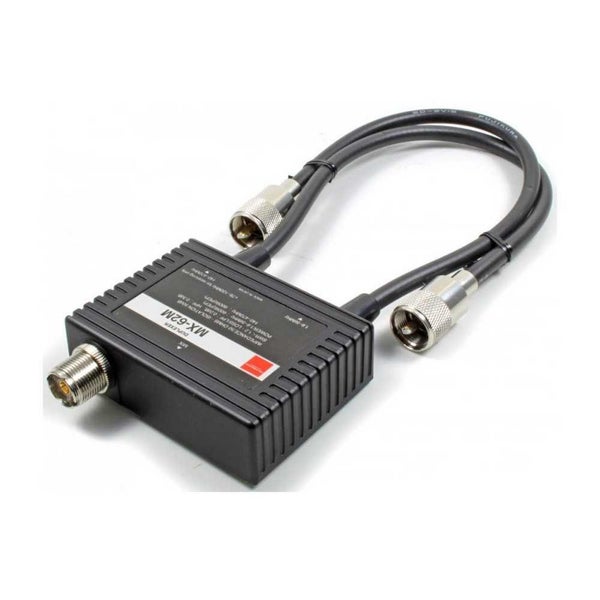

100% Brand New Genuine Diamond MX-62M Duplexer
Technical Specifications:
- Pass Band Frequency:
- LPF: 1.6-56MHz
- HPF: 76-470MHz (76 to 120MHz receiving only)
- Power:
- 1.6-56MHz 600W (PEP)
- 140-150MHz 600W(PEP)
- 430-470MHz 600W (PEP)
- Insertion loss:
- 1.6-56 MHz Less than 0.2dB
- 140-150MHz Less than 0.3dB
- Impedance: 50ohms / VSWR:Less than 1.2
- Isolation: More than 50dB
- Connector Mixed
- SO-239 1.6-56MHz
- PL259 76-470MHz N-P
- Coaxial cable: 5D-2V 35cm
- Dimensions: 86(w) x 25(h) x 64(d)mm
- Weight: 360g
