Description

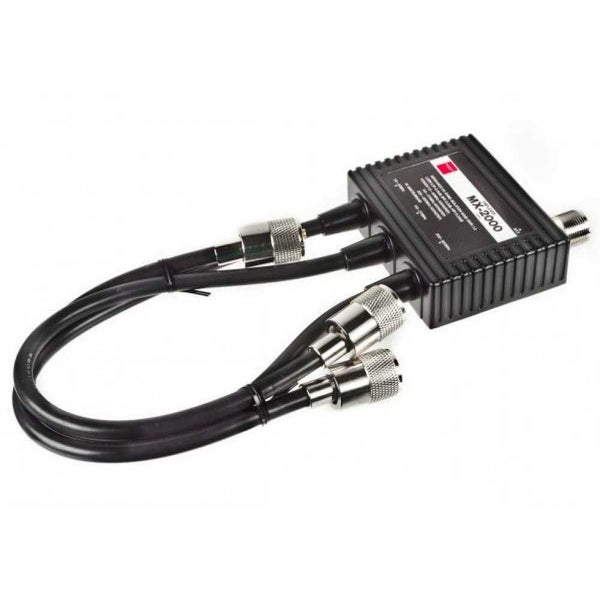

100% Brand New Genuine Diamond MX-2000 Triplexer
Technical Specifications:
- Passband width:
- LPF 1.6 to 60MHz
- BPF 110 to 170MHz
- HPF 300 to 950MHz
- Power rating:
- LPF 800W(PEP)
- BPF 800W(PEP),
- HPF 500W(PEP)
- Isolation loss:
- LPF Less than 0.15dB,
- BPF Less than 0.2dB,
- HPF Less than 0.25dB
- Isolation: More than 60dB
- Impedance: 50 ohms
- VSWR:Less than 1.2:1
- Connector: Mixed M-J/(50)M-P/(144)M-P/(430)M-P
- Coaxial cable: 5D-2VS(35cm)
- Dimensions: 86(w) x 25(h)x 64(d)mm
- Weight: 360g
** ALL ITEMS EX STOCK FROM OUR CHRISTCHURCH WAREHOUSE **
Details
Condition:
Brand:
Shipping & pick-up options
| Destination & description | Price | |
|---|---|---|
| Nationwide 2-3 days, Standard | $7.50 | |
| Nationwide 2-3 days, Standard, Signature | $11.00 | |
| Nationwide 4-7 days, Rural Standard | $13.00 | |
| Nationwide 4-7 days, Rural Standard, Signature | $16.50 | |
| Combine with another item you've paid shipping on | $0.00 | |
| Pick-up available from Christchurch City, Canterbury | Free | |
Estimated delivery times in business days
Payment Options
Pay instantly by card, Ping balance or saved bank account.
Four fortnightly interest-free payments.
NZ Bank Deposit
Questions & Answers
No questions have been asked!
DIAMOND MX-2000 Triplexer - HF 50/144/430MHz
Closes: Wed 7th May, 8:32pm
6 days, 7 hours, 38 minutes
