Description

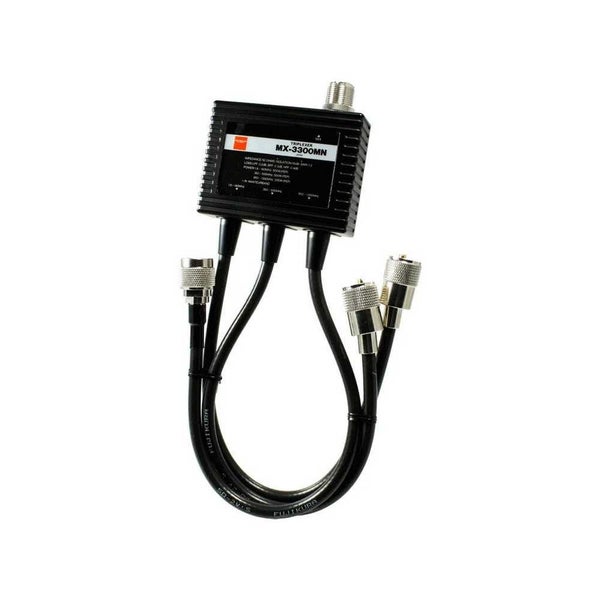

100% Brand New Genuine Diamond MX-3300MN Triplexer
Technical Specifications:
- Passband width:
- LPF 1.6 to 160MHz
- BPF 350 to 500MHz
- HPF 850 to 1300MHz
- Power rating:
- LPF 800W(PEP)
- BPF/500W(PEP)
- HPF:200W(PEP)
- Isolation loss:
- LPF Less than 0.2dB,
- BPF Less than 0.3dB,
- HPF/Less than 0.4dB
- Isolation: More than 55dB
- Impedance: 50ohms
- VSWR: Less than 1.2:1
- Connector: Mixed M-J/(144)M-P/(430)M-P/ (1200)N-P
- Coaxial cable: 5D-2VS(35cm)
- Dimensions: 86(w) x 25(h) x 64(d)mm
- Weight: 385g
** ALL ITEMS EX STOCK FROM OUR CHRISTCHURCH WAREHOUSE **
