Description
100% Brand New Genuine Diamond WD330j HF Terminated Folded Dipole Antenna 2 to 30MHz.
The WD-330J Diamond T2FD design antenna has a very wide band from 2 to 30MHz for universal use (transmission / reception) for amateur radio, shortwave listening (SWL) and commercial services.

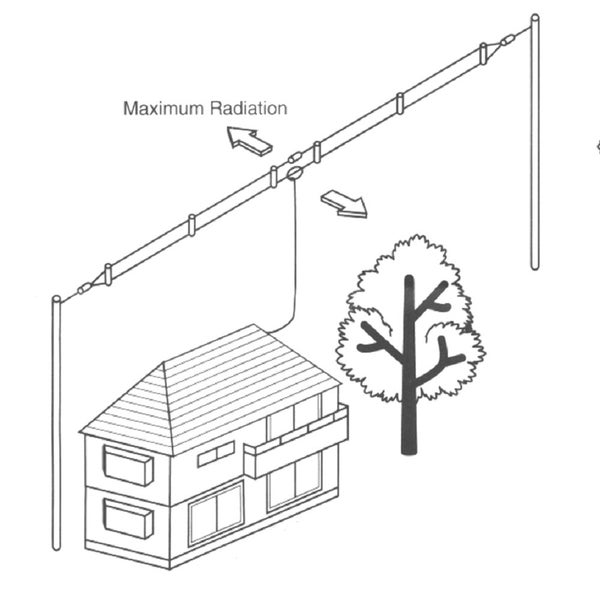

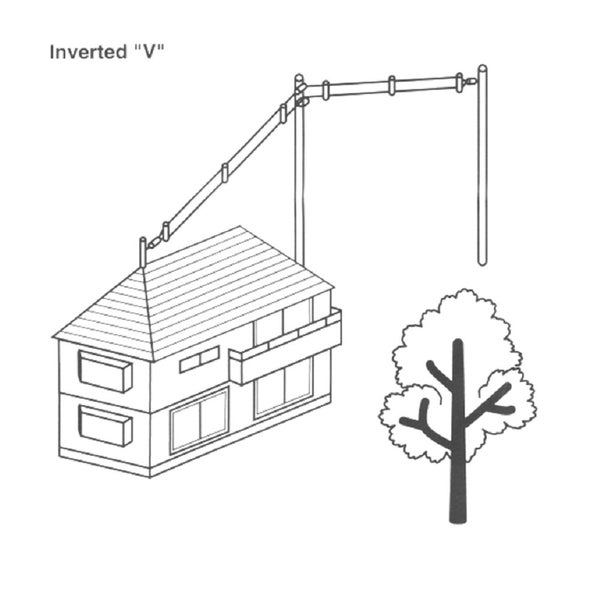

The WD330J Base Station Antenna can be installed in a horizontal position, the WD-330J antenna is then directional like a dipole, or installed in an inverted V and the antenna becomes almost omnidirectional.
Technical Specifications:
- Frequency Range: 2 - 30 MHz
- SWR:
- SWR 2:1 (from 1.8 to 4.9 MHz)
- SWR 1.5:1 (from 5 to 15.9 MHz)
- SWR 2.0 :1 (from 16 to 30 MHz)
- Antenna Type: Wire Antenna
- Antenna Balun Connection: SO239
- Antenna Total Length: 25 metres
- Connection to transceiver: PL259
- Max Power: 150 Watt PEP (SSB)
Coaxial feeder cable from the antenna to your radio is not included and is additional.
