Description

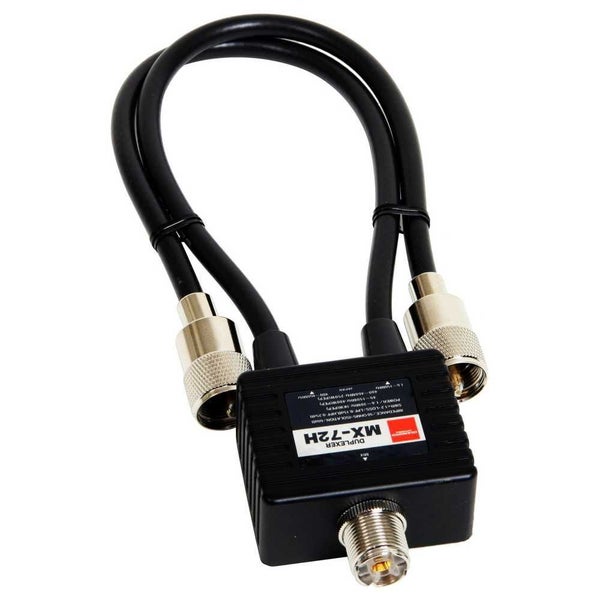

100% Brand New Genuine Diamond MX-72H Duplexer
Technical Specifications:
- Passband width: LPF 1.6 to 30MHz & 49 to 150MHz HPF 400 to 460MHz LPF 1.6 to 225MHz Receive Only HPF 340 to 1000MHz Receive Only
- Power rating: 1.6 to 30MHz: 400W(CW)/1kW(PEP), 49 to 150MHz: 150W(CW)/400W(PEP), 400 to 460MHz: 100W(CW)/250W(PEP)
- Insertion loss: LPF/Less than 0.15dB,HPF/Less than 0.25dB
- Isolation: LPF: More than 60dB
- Impedance: 50ohms
- VSWR: Less than 1.2:1
- Connectors: Mix Connector: SO239 (Female) Port connectors: PL-259 and PL-259
- Coaxial cable:5D-2VS(35cm)
- Dimensions: 46(w) x 25(h) x 57(d)mm
- Weight: 220g
** ALL ITEMS EX STOCK FROM OUR CHRISTCHURCH WAREHOUSE **
