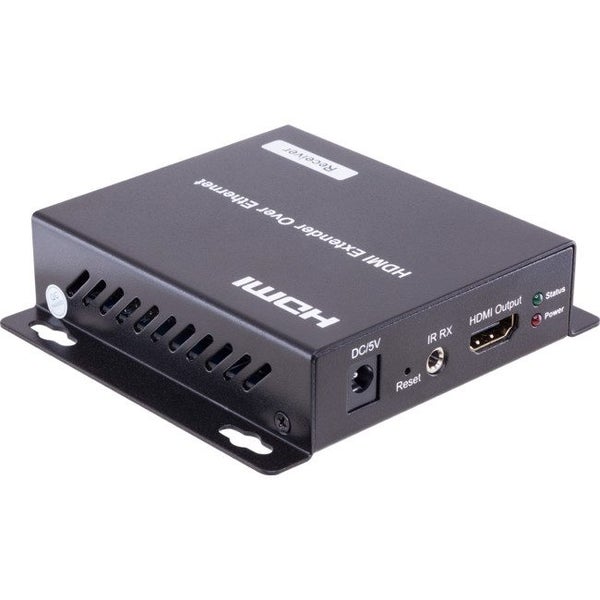

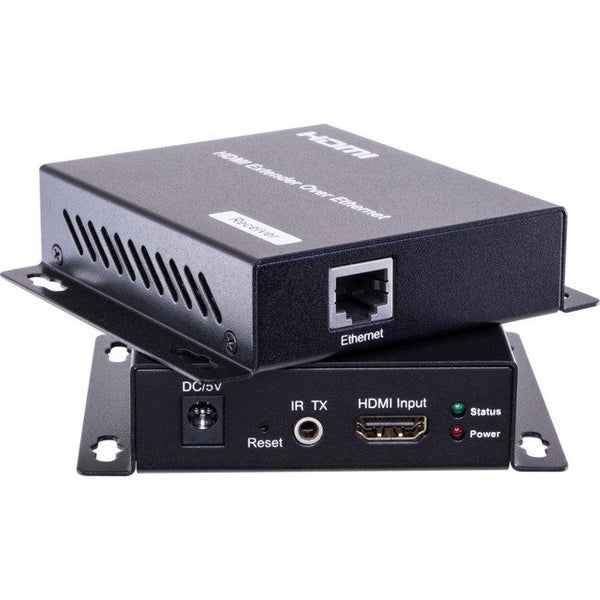

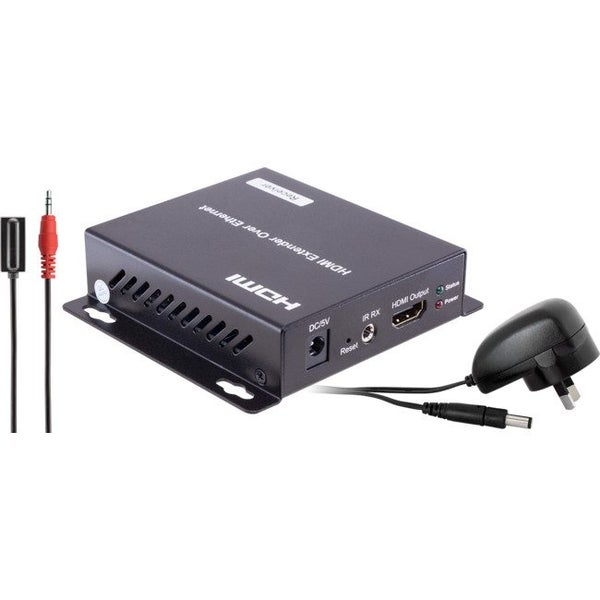

For a speedy processing of your order, please ensure you enter your phone number at checkout. Easily distribute HDMI over IP. OverviewHDMIIPECOV2 PRO2 HDMI OVER IP DISTRIBUTION | HDMIIPECOV2 is a budget option for extending HDMI source over network, using MJPEG compression. It supports one to one and one to many operation. Extends 1080p HDMI signals up to 120m over single UTP CAT5e/CAT6 cable Supports point to point, point to many MJPEG compression HDCP compliant With wideband IR (38-56kHz) control Supports TCP/IP protocol With mounting ears Default TX IP: 192.168.168.55 Default RX IP: 192.168.168.56 Applications SpecificationsSpecifications

Operating Temperature Range -5°C to 35°C Operating Humidity Range 5 to 90% RH (No condensation) Input Video Signal 0.5-1.0V P-P Input DDC Signal 5V p-p (TTL) Supported Video Format DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p Transmission Distance 120m: 1080p 8-bit over CAT5e/CAT6 24AWG solid cable Data Bandwidth 10-90Mbps Power Consumption TX: 3WRX: 3W Dimension (L×W×H) 103.5mm × 93.5mm × 24.6mm IR Frequency 38K-56KHz Net Weight TX: 220gRX: 220g FAQFAQ | Is the HDMIIPECOV2 suitable for many-to-many applications? Yes, however it is not as easy to setup nor is it recommended for reasons explained below:The HDMIIPECOV2 uses MJPEG compression which requires very high bandwidth and is likely to saturate your network bandwidth when used in a many-to-many scenario. For this type of application we strongly recommend the Pro2 which uses H.264 compression that utilises substantially lower bandwidth when compared to MJPEG. The other issue with many-to-many applications is that it requires you have a managed network switch, and set up different VLANs for each transmitter used and then change the receiver IP address accordingly. For example, you set VLAN 1 for Transmitter 1 (eg. Foxtel), VLAN2 for Transmitter 2 (eg. DVD player), when you want the Receiver 1 to
