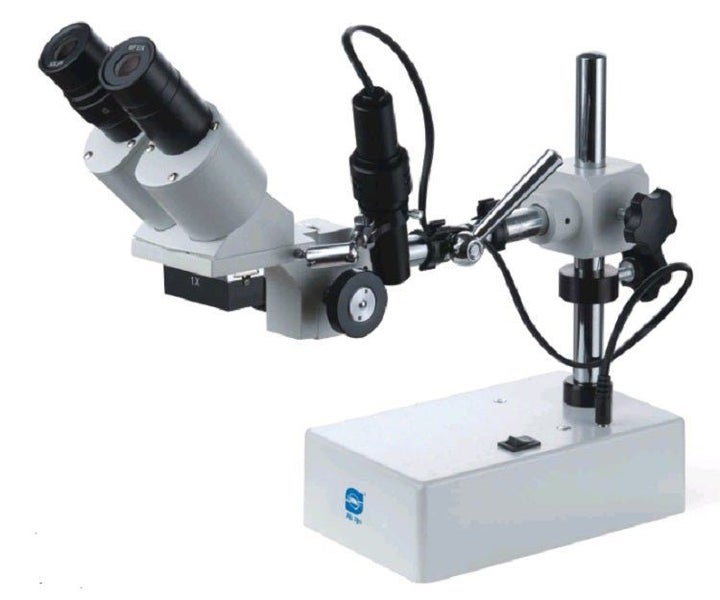

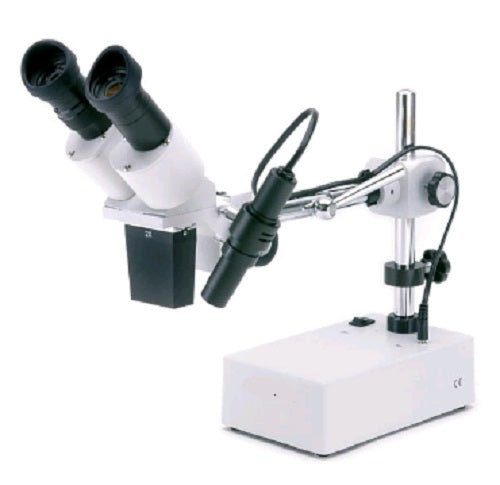

The ST50 series of single magnification stereo microscopes are designed for those inspection and assembly/soldering tasks requiring plenty of distance between the microscope and the object under observation. The fully coated, sharp optics give an upright, non-inverted image over a wide field of view which is sharp and clear. These optics also reflect accurately the original true colour of the view object. Accurate alignment of the optics ensures the observer can enjoy a fatigue-free viewing experience over a long period of time. While 20X magnification is standard it can be increased to 80X with optional eyepieces and objective lenses or decreased to 10X giving an even larger field of view.

PART Name: Eyepiece

DESCRIPTION:

1 Wild field eyepiece WF5X/18mm 2 Wild field eyepiece WF10X/20mm 1 Wild field eyepiece WF15X/13mm 1 Wild field eyepiece WF20X/10mm

PART Name : Head

DESCRIPTION:

1 45° inclined binocular viewing head

PART Name : Objective

DESCRIPTION:

1 1X objective, working distance: 165mm 2 2X objective, working distance: 119mm 1 3.5X objective, working distance: 124mm

PART Name : Illuminator

DESCRIPTION:

1 Oblique illumination, 1W LED

PART Name : Body

DESCRIPTION:

1 Pillar stand 1 Long arm 1 Focus arm 1 Base
