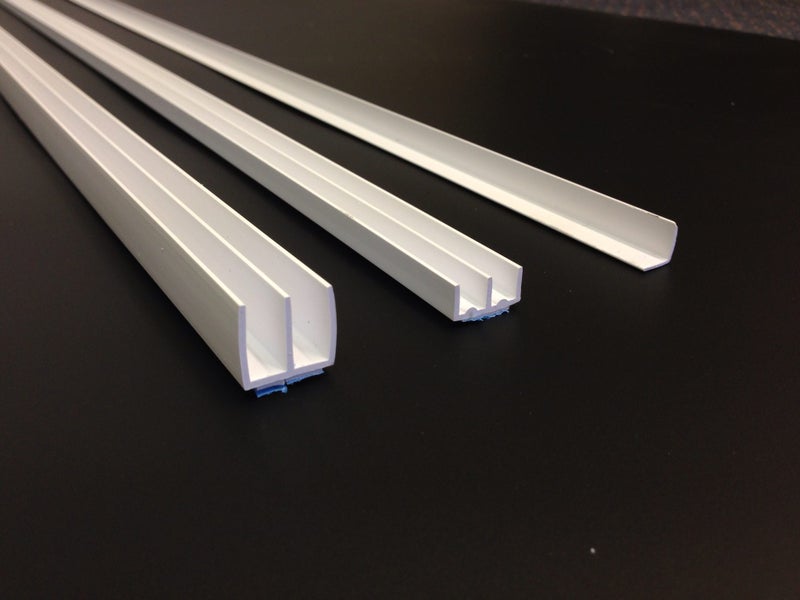

Kit contents: 3x 1000mm Length - Deep Track (Top & Sides) 1x 1000mm Length - Shallow Track (Bottom)+Bristle Strip and Handle Angle

Designed for Sash Windows.

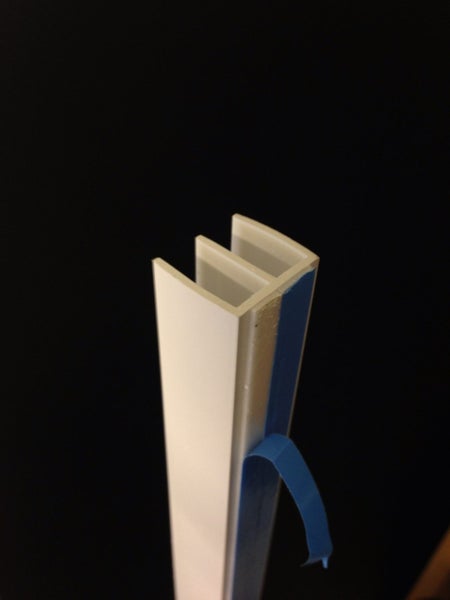

Trackglaze uses PVC Double Sliding Tracks on all sides of the window cavity, Bristle seal on all edges of the glazing sheets and a simple PVC Angle as a finger pull to open and close as required. Each component has self adhesive tape applied for easy installation with a minimum of tools, although the track lengths can be strengthened with other appropriate fixings if you require.

If you are using glass with Trackglaze, it is recommended that both height and width are limited to 1500mm in order to make them light enough to install and slide safely. Plastic glazing sheets are lighter, but larger sheets have a tendency to bow vertically under their own weight, so it is recommended that the height of acrylic or polycarbonate sheets within Trackglaze is limited to 1000mm (1m). The angle handles included in the kits further reduce the risk of bowing.

Trackglaze is designed for use with 4.5mm Acrylic sheets.

• firstly the prepared glazing is pushed up into the deep top track,
• secondly lifted over the lip of the bottom track,
• finally positioned into the corresponding bottom track. The longer legs of the top track still enclose the glazing, which is insulated on all sides by the Bristle Seal. The installation process is demonstrated and summarised in our video below, and the Trackglaze instructions PDF contains comprehensive information on measuring up, installation and safety.

Trackglaze packs include Easyfix Surface Preparation Wipes, to clean and degrease the window area before applying the self adhesive tracks. Extra sachets of the wipes are also available.

See other listing for longer length options.
