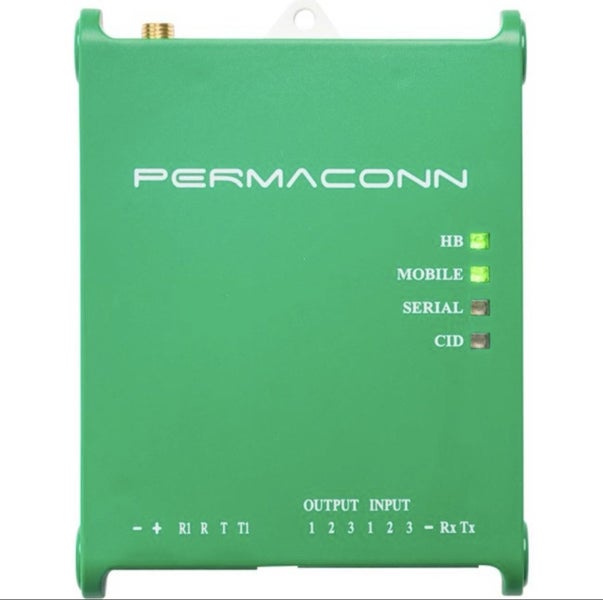

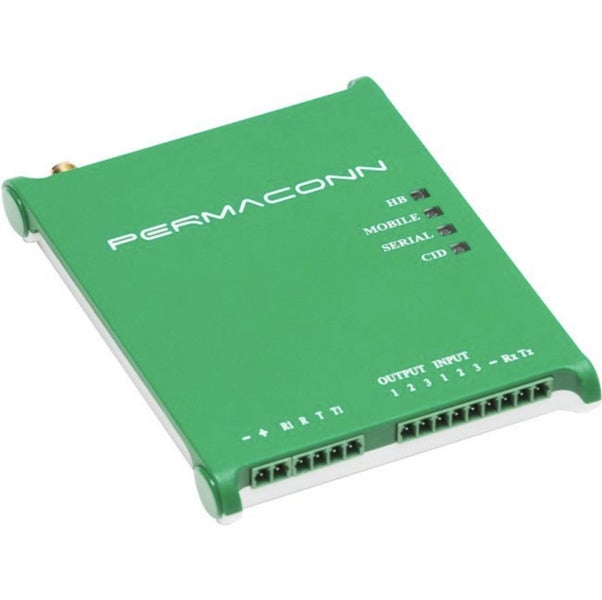

Permacomm 4G Alarm dialer

As new, PM24-4G SINGLE SIM 4G GSM DIALLER - PERMACONN | Single SIM 4G | The smallest and most cost-effective single SIM Communicator. | This Communicator is compatible with any Contact ID enabled alarm panel. | The PM24 incorporates the latest technology available today - and signals are transmitted over the CAT M1 IoT network, that forms part of the 4GX network.Innovative: Uses the latest Cat M1 network designed for machine-to-machine comms Higher Performance: Longer range and 20% greater penetration into buildings Lower Power Consumption: Easily powered by the alarm panel No Drilling or Screws: Attaches magnetically to the alarm panel enclosureSmartphone Control: Works with Pocket Secure and Atlas FeaturesSmall size: Fits inside alarm panel enclosure and suitable for ATM & M2M applications AES128 encryption for alarm data: Secure alarm signallingVarious diagnostic LEDs: Easy installationActivate, control and diagnose PM24 using Atlas portal: Seamless installation processInternal watchdog reset function: No unnecessary service call-outsMonitors & reports dialler interface lead status:secure interface from alarm panel dialler to PermaconnOutputs can be configured to arm/disarm the alarm system, control gates and lights. ‘Pocket Secure' smartphone app controls these functions Specifications Specifications

Housing Material ABS Plastic - Greeg Dimensions (H×D×W) 108mm × 15.5mm × 80mm Weight 80g LTE FDD B3 / B28 Power 8-15V DC Terminal Supply Power Consumption Standby: 0.04A @ 13.8V DC Transmitting: 0.19A @13.8V DC Modem Quectel BG96 Auxiliary Input 3 × 24hr inputs - state change Detected every second EOL 3.3K
