MACE LIFTER REPLACEMENT KIT FOR HOLDEN LS1 5.7L V8 FROM 10/2003
Description

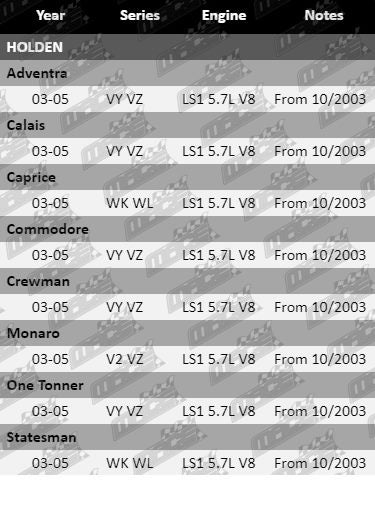

Vehicle Fitment: Adventra VY VZ, Calais VY VZ, Caprice WK WL, Commodore VY VZ, Crewman VY VZ, Monaro V2 VZ, One Tonner VY VZ, Statesman WK WL
For further details, please refer to the fitment guide in the above images.
Mace lifter replacement kit comprises of hydraulic roller lifters, lifter trays, head gaskets and head bolts. This kit suits Holden Commodores and similar platforms fitted with the LS1 from 10/2003. The GM high-performance hydraulic roller lifters are a performance replacement for stock hydraulic roller lifters, are preloaded, and have to be installed between 3/8 and 3/4 turn. The GM OE replacement LS lifter tray/guide set included in the kit is specifically designed to hold the lifters in place and keep them from rotating. The GM MLS head gasket set is a perfect fit for both stock and mildly modified engines. These gaskets feature 3 layered stainless steel faces. ARP head bolt kit comes complete with hardened washers and high-strength hex nuts.
Gasket Specifications:
- Gasket material: Multilayer steel (MLS)
- Max bore size: 3.920"
- Compressed thickness: 0.051"
- GM part number: 12498544

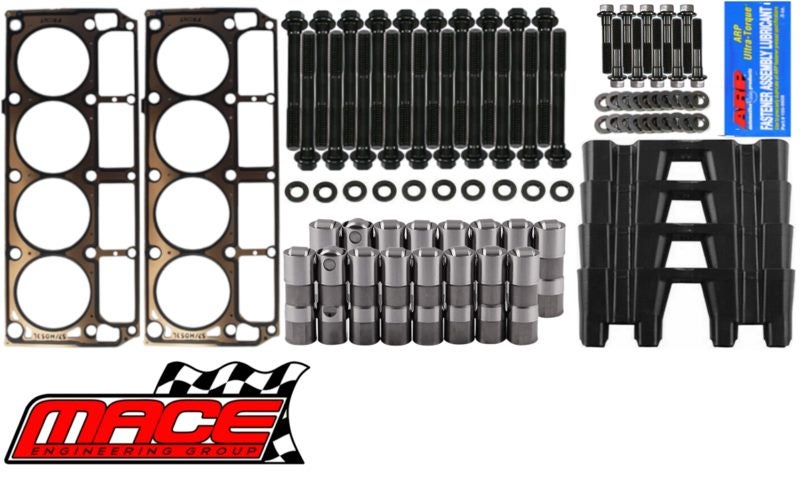

Contents:
- 01 X MLS cylinder head gasket set
- 01 X Fastener assembly lubricant
- 04 X Lifter tray/guide (GM: 12595365)
- 10 X Short cylinder head bolt (M8 x 1.25 x 45)
- 16 X Hydraulic roller lifter (GM: 17122490)
- 20 X Long cylinder head bolt (M11 x 2.00 x 100)
- 30 X Washers for different size bolts
Part:Number: SPG842
Notes:
- The image is for illustrative purposes only.
- Lifter replacement kit for LS1 till 09/2003 can be purchased through another listing.
- Please follow the torque specifications as recommended by the service manual.
- The hydraulic roller lifters, lifter trays, head gaskets and head bolts can be separately purchased through other listings.
