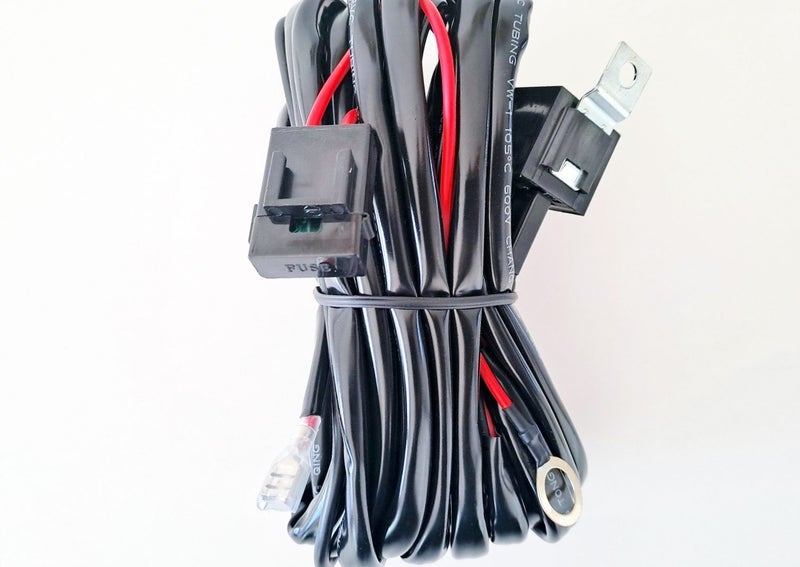

LED wiring harness with switch for dual light bars

You are buying 1x LED wiring harness with dual output

Makes for an easy install of 2x LED lights.

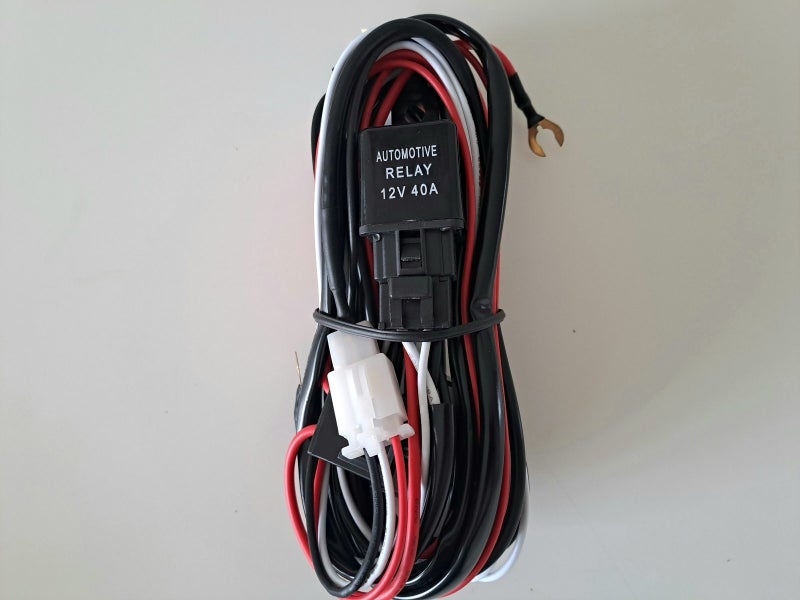

Comes with switch, 40A relay and 30A fuse.

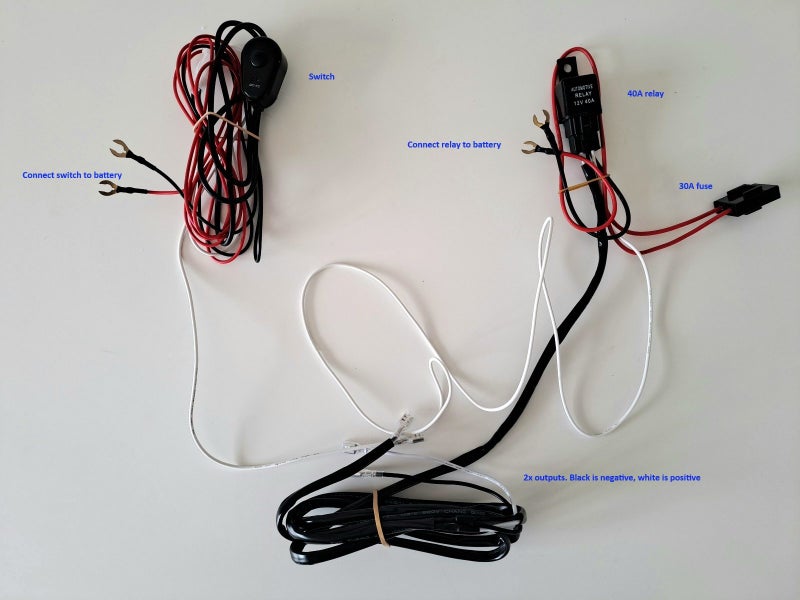

Dual wiring harness fitting instructions:

Fix the relay close to the battery.

Connect red wire from relay to +ve terminal on the battery.

Connect black wire from relay to -ve terminal on the battery.

Connect red wire from switch to +ve terminal on the battery.

Connect black wire from switch to -ve terminal on the battery.

Connect black wire from output cable to black wire (-ve) on the light bar

Connect white wire from output cable to red wire (+ve) on the light bar

If only one output is being used, tape up the unused output terminals with insulation tape.

When using the switch to turn off the light bar, the relay will emit an audible click. This is normal.

Measurements: Fuse to battery 50cm. Relay to switch 240cm. Relay to Output 1: 100cm. Relay to Output 2: 195cm.

Can be used with our 10W, 15W, 18W, 36W, 120W, 180W, 240W and all the way up to 400W LED light bars.

Great for use on 4WD lighting, tractor lights, LED light bars, LED spot lights, LED flood lights, curved LED lights. LED beacons.

Free postage when combined with one of our LED lights. Just pay the postage on the light.

2 year replacement warranty. For similar products, please visit our Trade Me store - LED BULBS NEW ZEALAND
