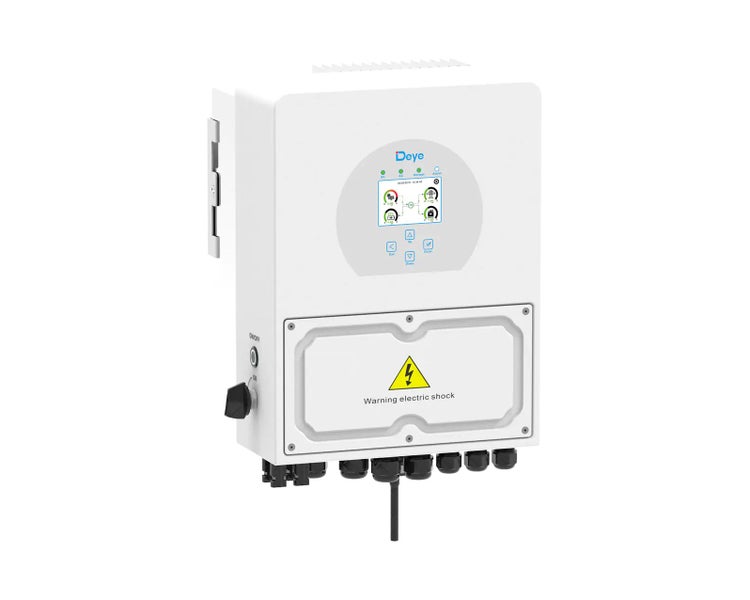

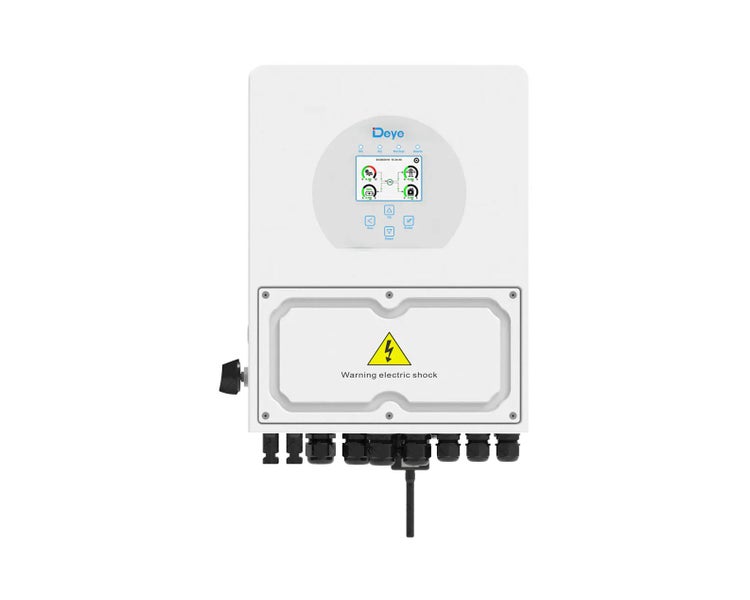

Deye 24V 3kW Single Phase MPPT Hybrid Inverter SUN-3K-SG04LP1-24-AU

Vector Approved Inverter DEYE New Zealand Distributor - Micromall Solar 4th Generation AU Version Inverter 10-Year Warranty

SUN-3K-SG04LP1-24-AU |24V | 3kW | Single Phase | MPPT | Hybrid Inverter | LV Battery Supported Higher yields / Safe & Reliable / Smart / User-friendly

Colorful touch LCD, IP65 protection degree AC couple to retrofifit existing solar system Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel Max. charging/discharging current of 140A 6 time periods for battery charging/discharging Support storing energy from diesel generator

Model: SUN-3K-SG04LP1-24-AU

Battery Input Data Battery Type: Lead-acid or Lithium-ion Battery Voltage Range (V): 40-60 Max. Charging Current (A): 140 Max. Discharging Current (A): 140 Charging Strategy for Li-Ion Battery: Self-adaption to BMS Number of Battery Input: 1

PV String Input Data Max. DC Input Power (W): 4500 Rated PV Input Voltage (V): 500 Start-up Voltage (V): 125 MPPT Voltage Range (V): 150-425 Rated DC Input Voltage(V): 370 Max. Operating PV Input Current (A): 13 Max. Input Short-Circuit Current (A): 17 No. of MPP Trackers/No. of Strings MPP Tracker: 1/1

AC Output Data Rated AC Output Active Power (W): 3000 Max AC Output Active Power (W): 3000 AC Output Rated Current (A): 13 Max. AC Output Current (A): 13 Max. Continuous AC Passthrough (A): 35 Peak Power (off grid): 2 time of rated power, 10 S

Efficiency Max. Efficiency: 97.60% Euro Efficiency: 96.50% MPPT Efficiency: 99.90%

General Data Weight (kg): 17 Cabinet size (mm): 330W x 433H x229D(Excluding connectors and brackets) Protection Degree: IP65

Install info professional service support! Communication with battery service support!
