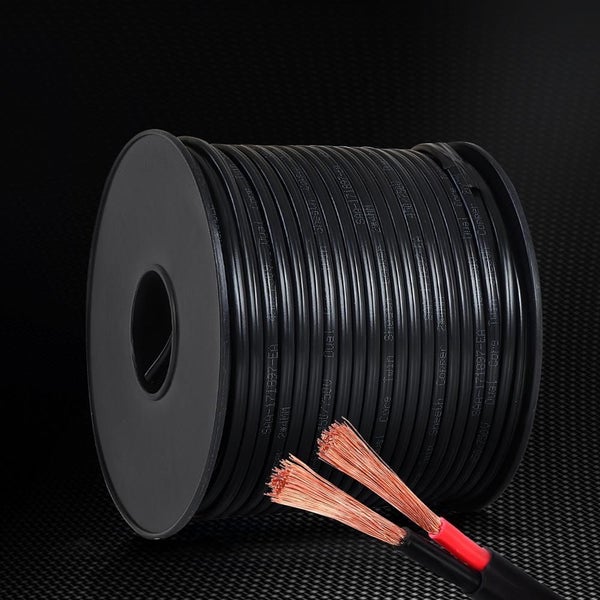

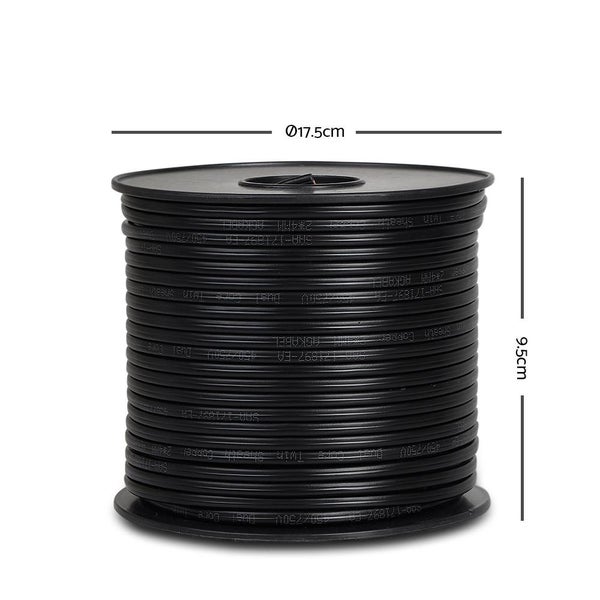

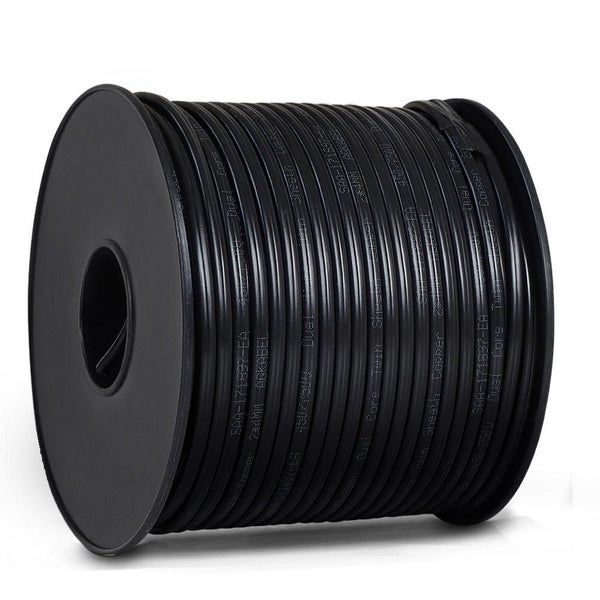

Twin Core Wire Electrical Automotive Cable 2 Sheath 450V 3mm 100M

Ships from outside warehouse - not available for pick up - will ship separately from other items.With its twin core design, our Twin Cable Sheath Wire is one of the best in the market. Comprising pure oxygen-free copper and a highly durable and strong reinforced PVC cover with black sheathing, our twin core sheath wire can handle any application with ease and confidence. And that can make a difference with a good project and a great one. Not least. The wire is waterproof, fire-retardant and can withstand extreme temperature changes without losing any of its effective conductivity. The wire is SAA-certified and conforms to strict Australian standards.Features 3mm twin sheath automotive cable Oxygen-free copper core conductor Low eccentricity Reinforced PVC material SAA-certified RoHS Can normally work up to 450V AC/DCSpecifications Conductor: Oxygen-free plain copper wire to AS/NZ 1125 Insulation: V90 PVC to AS/NZ 3808 Sheath: 5V90 PVC to AS/NZ 3808 Amp rating: 16 No. of cores: 2 Cable Length: 100m Industry Equiv. : 3mm Strand no. diameter: 14/0.32mm Nominal area: 1.13mm2 Nominal O.D.: 3.3mm x 5.5mm Colour: Black sheathing Conductor resistance 17.0O/Km(20?) Dielectric strength(kV/sec AC):2.5/60 Unaged acceptable tensile strength = 12.5Mpa Unaged acceptable ultimate elongation =130%Package Content 1 x Twin core cable 1 x Wire spool All Items are listed in NZD including GST. Delivery is approx 7-14 days. Include your phone number with your order. All stock qty is accurate as per the stock holding in our actual Melbourne warehouse.
