Solar Controller
Description

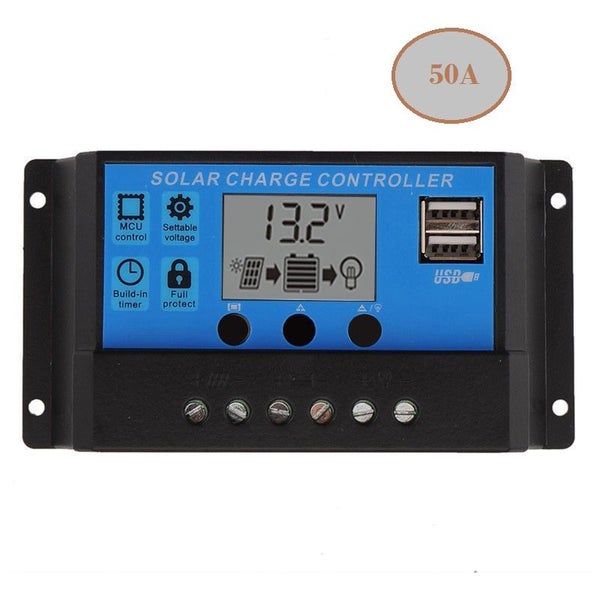

50A Solar Panel Charge Controller Intelligent Regulator 12V/24V Auto Big LCD Solar Controller with 5V Dual USB Output for Home PV System
Features: The multi-functional LCD display dynamically displays all the operating data and a working condition can be conveniently switched working modes and parameter configuration Solar Panel Controller.
Dual MOSFET reverse current protection, the low heat production. Built-in short-circuit protection, open-circuit protection, reverse protection, overload protection, more safety for using, suitable for home, industrial, commercial etc. 12V/24V auto work; LCD screen display; Two USB output; Easy operation interface.
With Dual USB Output With USB charge caution With DC function
1.Floating charge Voltage(HVD 13.3V-15V) 2. Recovery after under Voltage(LVD 11V-13.5V) 3.Under Voltage protection (RVD 9V-12.3V) 4.Load Mode(24hours,1-23hours,0hour) 5.Battery Option (GEL, LEAD-ACID, FLOODED)
description
Battery voltage: 12V/24V auto
Charge current: 50A
Discharge current: 50A
Max Solar input: <50V
Equalization: B01 sealed 14.4V
B02 Gel 14.2V
B03 flood 14.6V
Float charge: 13.7V(default,adjustable)
Discharge stop: 10.7V(defaul,adjustable)
Discharge reconnect: 12.6V(defaul,adjustable)
USB output: 5V/3A
Self-consume: <10mA
Package: 50A Solar Charge Controller English User Manual
