Description

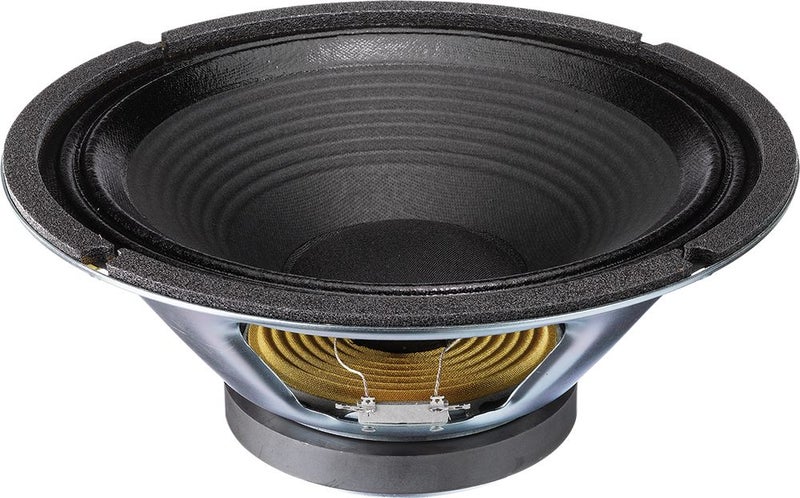

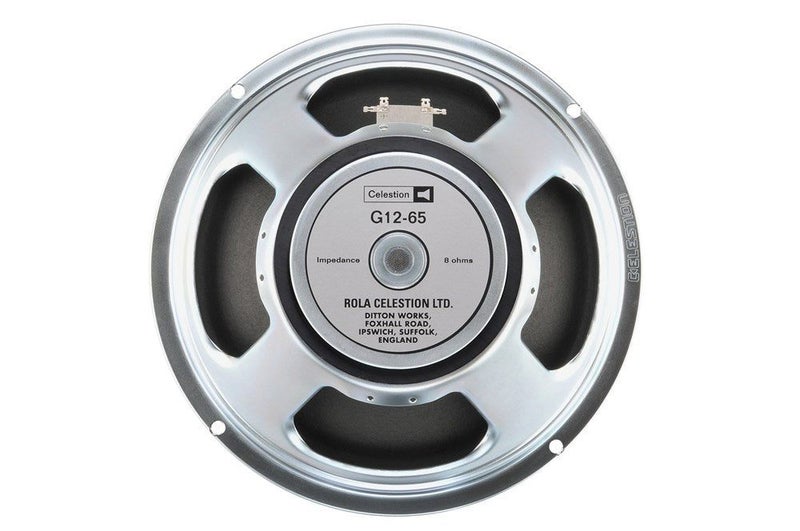

Originally created in the late 70s using more modern materials and techniques for a higher power handling, the G12-65 is widely regarded as one of the best guitar speakers ever produced for use in a 4x12 cabinet. With its fast attack and tightly controlled low end, the G12-65 had become a firm favourite with hard rock players by the early 80s. The precisely tuned mid-range and crisp defined top-end contribute to an aggressive crunch sound that punches through the mix while the mid-range warmth and detail give weight and depth to single notes. Listen to a sound clip of this speaker here! General Specifications

Nominal diameter

12", 305mm

Power rating

65W

Nominal impedance

Available 8Ohm or 15Ohm

Sensitivity

97dB

Chassis type

Pressed steel

Voice coil diameter

1.75", 44.5mm

Voice coil material

Round copper

Magnet type

Ceramic

Magnet weight

35oz, 0.99kg

Frequency range

80-5000Hz

Resonance frequency, Fs

85Hz

DC resistance, Re

Available 6.9Ohm or 11.8Ohm

Mounting Information:

Cut-out diameter

11.1", 283mm

Diameter

12.2", 309mm

Magnet structure diameter

5.7", 145mm

Mounting slot dimensions

0.31",7.9mm

Mounting slot PCD

11.7", 297mm

Number of mounting slots

Overall depth

5.0", 128mm

Unit weight

7.7lb, 3.5kg

##-

Details

Condition:

New

Impedance::

8 Ohm
