Description
>> Current Option: Diameter: P50-J1 >> Dispatch Now. GST, Duties Included. >> 100% Satisfaction Guarantee. >> NZ Local Support. Easy Return.

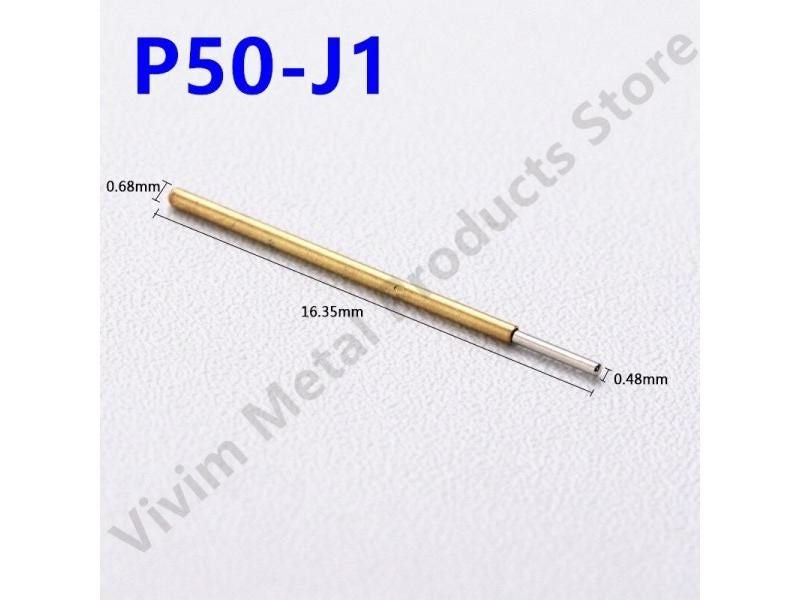

Current Option: Diameter: P50-J1
Other Options: Diameter: P50-J1, P50-H2, P50-Q1, P50-LM2, P50-E2... Other options may lead to different prices.
For option selection, visit URL --> https://www.bigface.nz/item/3191461 Copy the preferred one to the [Delivery Instructions] when buynow on Trademe.
P50 Series Nickel Plated Brass Spring Test Probe Test Pin Pogo Pin Electric Detection Needle ICT FCT PCB Test Tool P50-B P50-B1
SPECIFICATIONS: DIY Supplies: Electrical Model Number: P50-A2/B1/D2/E2/E3/F1/H2/J1/LM2/Q1/Q2 Item Type: Pins High-concerned Chemical: None Certification: CE Is_customized: Yes Product Name: P50 Series Nickel Plated Tip ICT/FCT Spring Test Probe Model Number: P50-A2/P50-B1/P50-D2/P50-E2/P50-E3 P50-F1/P50-G2/P50-H2/P50-H3/P50-J1/P50-LM2/P50-Q1/P50-Q2/P50-T2 Color: Gold+Silver Total Length: 16.35mm/16.55mm Barrel Diameter: 0.68mm Tip Style: As Shown In The Dimensional Drawing Plunger/tip Diameter: 0.48mm/0.90mm/1.20mm Tip Style Surface: Nickel Plating Tip Style Material: Brass/Copper Working Stroke: 3.35mm Or 3.55mm Spring Force At Working Stroke: About 75g Hole Drilling Diameter: 0.90mm Grid: 1.27mm Current Load Capacity / Rated Current: 1A Contact Resistance: 50mOhm Support Different Spring Force Customization: 20g/40g/120g And So On
FEATURES: DIY Supplies for Electrical Use. Certification: CE. Model Numbers: P50-A2/B1/D2/E2/E3/F1/H2/J1/LM2/Q1/Q2. Item Type: Pins. Customized Available.
Product Name: P50 series nickel plated tip ICT/FCT spring test probe. Colors: Gold+Silver. Total Length: 16.35mm/16.55mm. Barrel Diameter: 0.68mm. Tip Style as Shown in Dimensional Drawing.
