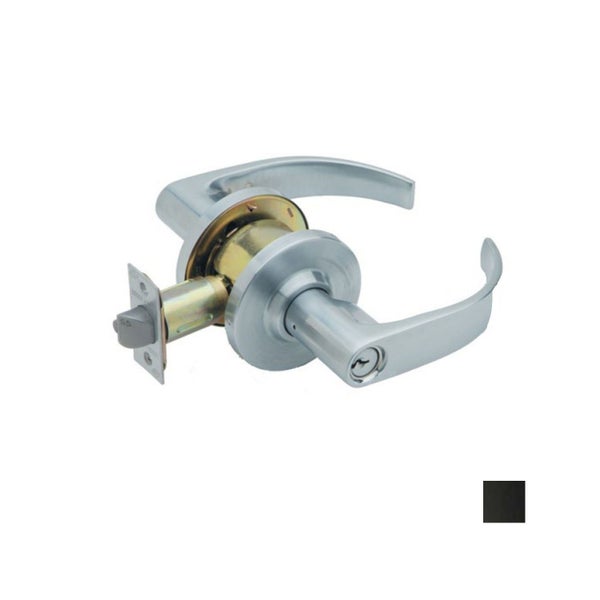

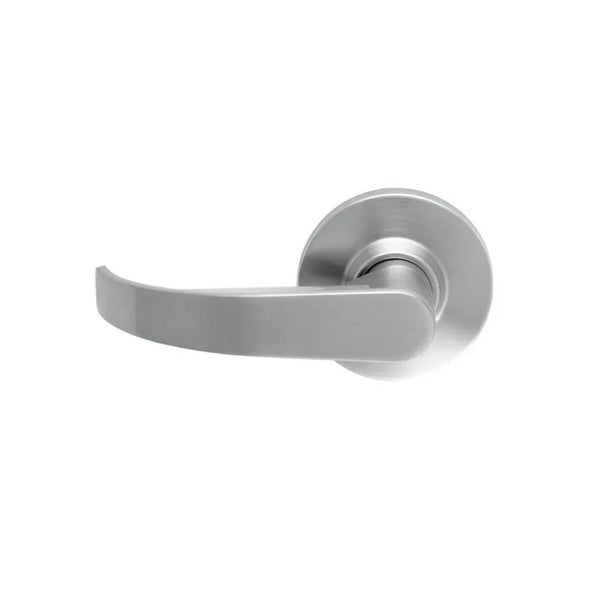

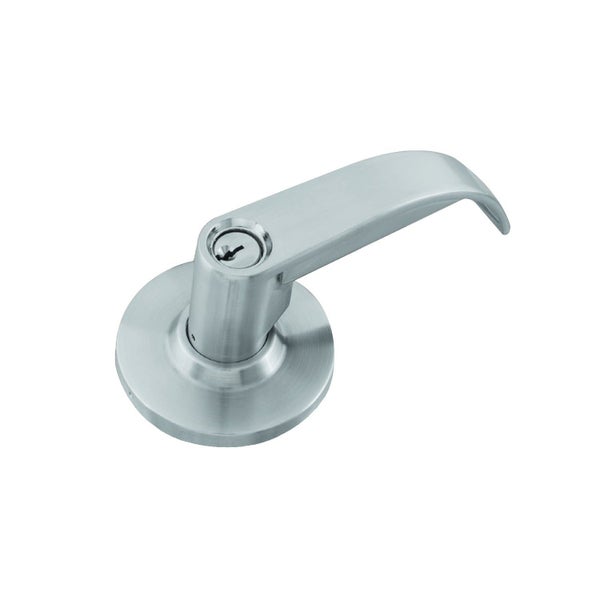

Legge Sparta G2 Series Door Lever Set

Available Functions:

Classroom Lever Function - Outside lever locked and unlocked by key. Inside lever always unlocked

Entrance Lever Function - Key outside locks/unlocks both handles simultaneously. Key inside locks/unlocks both handles simultaneously

Passage Lever Function - Both levers always unlocked

Storeroom Lever Function - Outside lever fixed. Entrance by key only. Inside lever always unlocked

Bath / Bedroom Privacy Lock - Push-button locking locks outside lever. Turning inside lever releases button. Outside lever has emergency release

• Dummy Lever Function - Single dummy trim Dummy trim for one side of door. Used for door pull or as matching inactive trim

Legge has long been associated with providing Australasia industry-leading safety, security, style and convenience and the G2 cylindrical lockset is no exception. The G2 lockset offers ANSI/BHMA Grade 2 certification and the Sparta lever, with it's 35mm to 45mm clearance.

Features:

• Sparta lever is compliant with AS1428:1-2009
• Tested in excess of 400,000 operating cycles
• Key removable outside lever for quick and easy cylinder placement
• Snap-on inside rose conceals mounting plate and screws
• Supplied standard with D and T strikes and spacer rings
• Two nickel silver keys per lock supplied with both
• Schlage 6 pin 'C' keyway and C4 6 pin keyway as standard
• The G2 series is ideally suited for residential, light and medium duty commercial applications
• Non-handed
• The 10 year warranty provides specifiers and users with assured quality and performance

Specifications:

Rose Diameter: 75mm

AS1428 Compliant: Yes

Finger Clearance: 44mm

Backset: 70mm

Keyway: C4 6 Pin and Schlage C 6 Pin

Material: Stainless Steel and Zinc

Available Function:

• Passage
• Privacy ...
