Grey and Black Water Macerator Pump (400) - Toilet/Sewage

• with 3 Inlets

The Macerator Sanitary Pump 400 is simply a tank which is gravity fed from your toilet, washing machine, shower etc. with a built in pressure switch which detects the incoming waste and starts a pump combined with cutting blades. A non-return valve is fitted as standard so enabling the unit to pump up to 8m vertically or 80m horizontally.

Using this pump you can add a bathroom to basements, garage conversions, granny flats, loft conversions, en-suite bathrooms, heritage sites and rooms with concrete slab floors even where there are no standard drains. The pump can either be installed behind the wall or exposed. With three inlets, this macerator 400 can easily deal with a wash basin, bidet and a power shower.

If you need to install the macerator outdoors, please place the unit under a cover or a spot away from rains and direct sunlight.

Features:

• Powerful yet quiet motor
• Lower power consumption
• Fully automatic wastewater detection
• Compact, neat and unobtrusive
• Stainless-steel impeller blades
• Non-return valve
• Superior quality seals
• Check valve (supplied)

Specifications:

• Power Supply: 220-240V AC, 50Hz
• Power: 400W
• Flow rate at max head L/min: 145L/min
• Discharge Pipe Diameter: 23mm/28mm/32mm/44mm
• Height of maximum discharge: 8m
• Length of maximum discharge: 80m (minus 1 meter for every elbow)

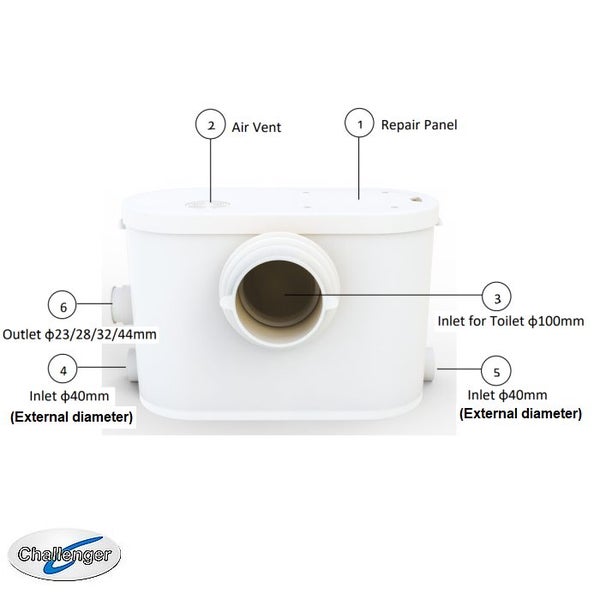

• 3 inlets + 1 outlet
• Water resistance: IPX4
• Dimensions (mm) : W420 x D195 x H290
• Noise level: 35 - 50 dBs

** Please note the inlet pipe sizing is 40mm EXTERNAL DIAMETER, NOT THE INTERNAL DIAMETER. **

Item is brand new and guaranteed 12 months warranty

Part No. 46903
