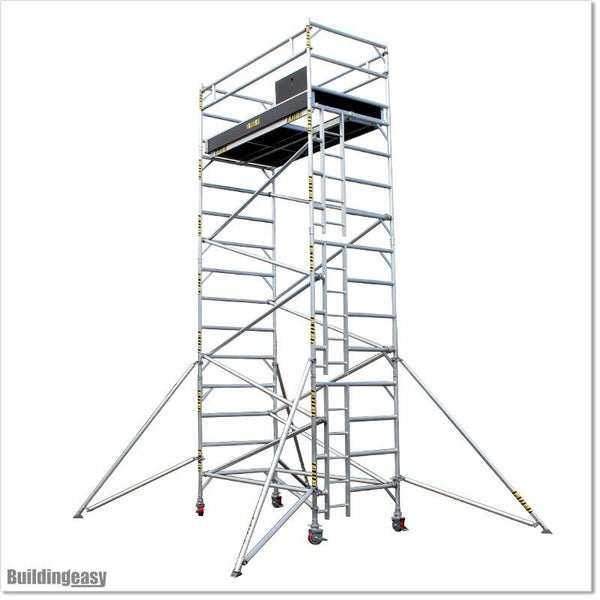

This is 5M mobile aluminium scaffolding for industrial use. Overall height is 6M.Platform height is 5M. Scaffolding is 2.5M wide and 1.25M deep. Total weight is 200Kg.

Complies to Australian and New Zealand AS/NZS 1576.1:1995 standards.

Maximum loading on scaffolding is 673Kg. Maximum loading on each platform is 224Kg.

Frames, bracing outriggers etc are constructed with 2” outer diameter and 2.0mm wall thickness aluminium. All the frames ends are reinforced to double thickness.

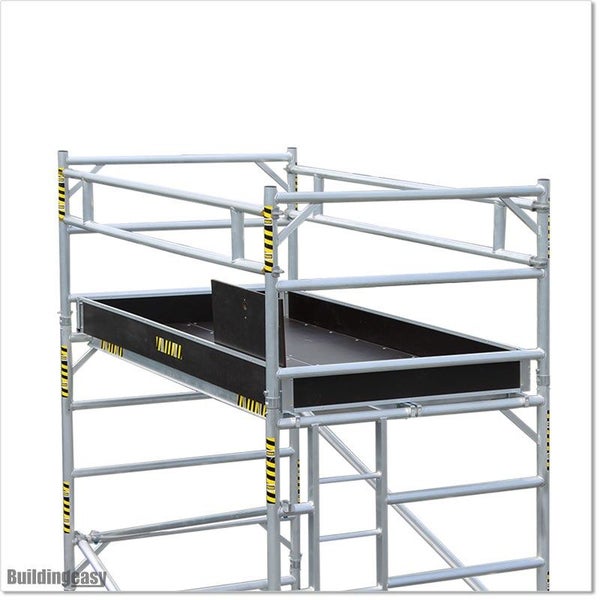

Platforms are made of aluminium frame with treated plywood decking. Platforms hooks to the frame then spring loaded latch locks for more safety. Surface of the platforms are serrated for better grip and minimize accidental slipping.

Frames are manufactured from strong 6061-T6 aluminium and anodized for durability. All joints are welded for maximum strength.

Braces are self-locking spring loaded type. Hooks are easy to fit or remove they can be locked into place in one simple operation. They are colour coded in Blue, Yellow and Black for easy identification.

Following are the list of items for this scaffolding.

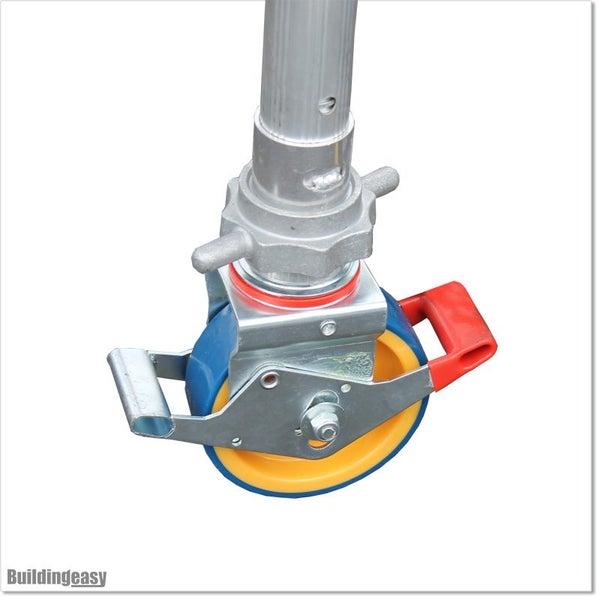

Frame 4 row – 3 Ladder Frame – 3 Long Guard rail Frame – 2 Short Guardrail Frame - 2 Yellow hook braces (for bottom frames) – 2 Blue hook brace (for cross bracing) – 10 Black hook brace (cross bracing for bottom frames) – 1 Adjustable Outriggers set – 4 Platform Regular – 1 Platform with Hatch - 1 Toe Board set -1 Adjustable Screw Jack Caster - 4

Additional parts / spare parts can be bought separately for this scaffolding. Check Accessories in our Buildingeasy website for more details and prices.

Please check my other auctions for different types of Scaffolding which may suit you better.

Shipping cost give is around the city. For out of city or rural deliveries cost please contact us.

We provide GST invoice if you need it.

Watch the Assembly Video with following link.

https://www.youtube.com/watch?v=rffHqTBZRb0&feature=youtu.be&ab_channel=MelSoysa
