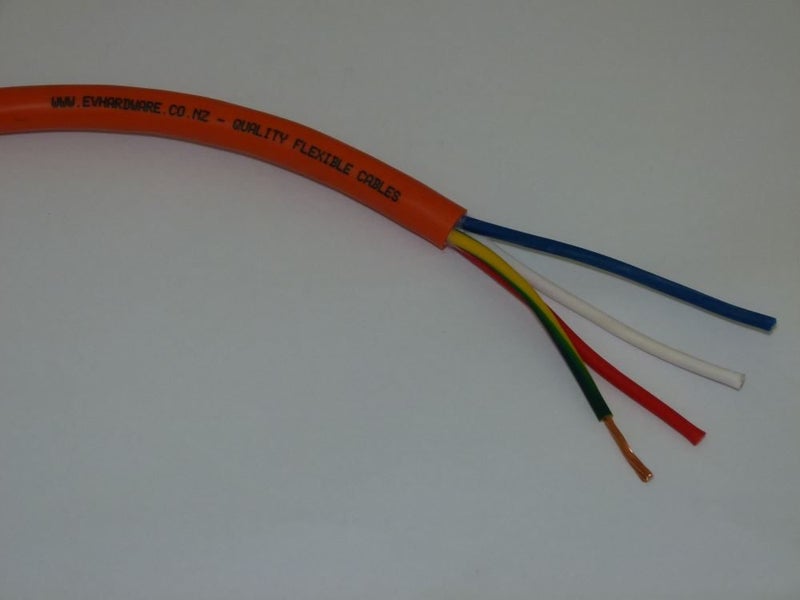

*** 4 Core x 4mm² Flexible Cable (3 Cores & Earth). ***

Cable Specifications:

• Continuous current rating: 45 amps (Unenclosed Touching, 30°C Ambient in Air)
• Nominal Conductor Diameter: 2.5 mm
• Nominal Cable Diameter: 13.5 mm

Construction/Detailed Specifications:

• Conductor: Fine stranded annealed copper to IEC 60228 and AS/NZS 1125.
• Insulation: LSFLEX® R-70 (X-HF-110), Cross-linked, Thermoset, Elastomeric.
• Jacket: Low-Friction E-Rubber® S-20 Thermoplastic, Elastomeric, Flame Retardant. Splash resistant to oil, skydrol, petrol, acid and sea water. Resists Ozone and UV. Excellent abrasion resistance. Submersible to 500m. Best practice PVC.
• Operating Temp: -40°C to +110°C.
• Voltage rating: 600/1000 Volts.
• Sheath Colour: Orange.
• Standards: AS/NZS 1125, AS/NZS1660.5.1, AS/NZS1660.5.6, AS/NZS 3008.1, AS/NZ3808, AS/NZS 5000.1 & IEC 60228, IEC 60332-1, IEC 60332-3-2.

Quantity = Price is per metre.
