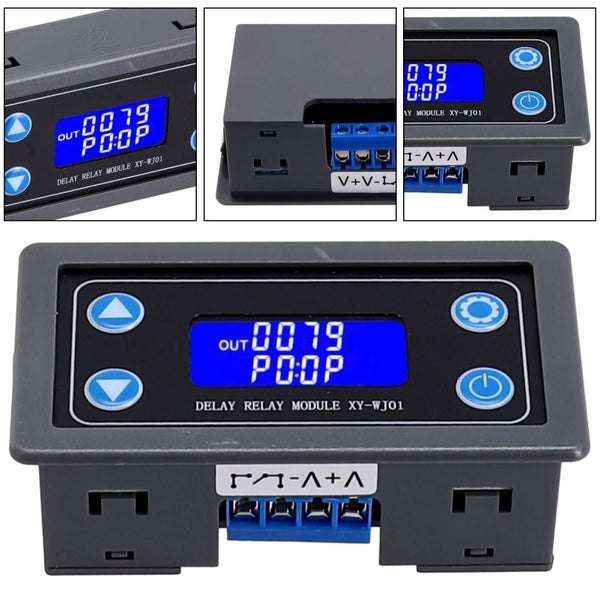

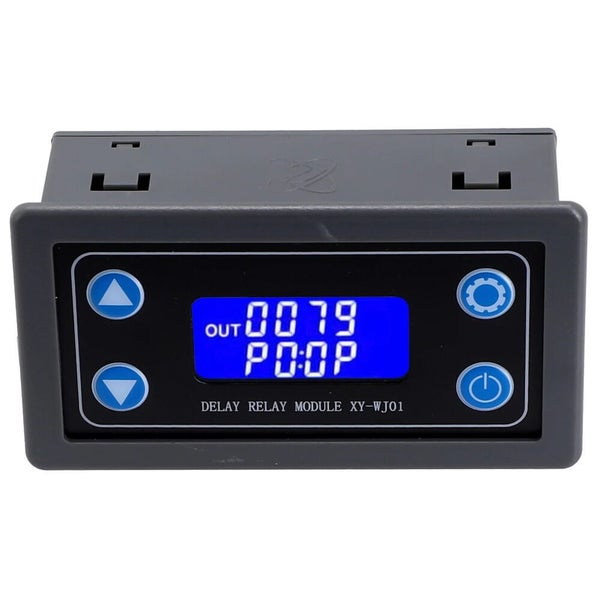

Digital Time Delay Relay Module Control Switch Timing Trigger DC 12V LCD

Features:

1. With LCD display, the current mode and parameters are clear at a glance, very clear and easy to use;
2. Support button trigger control, high and low level trigger, switch control, suitable for most occasions;
3. Wide voltage power supply (6-30V), use very build order;
4. Support UART data upload and parameter setting;
5. With comment pause function, with reverse connection protection, reverse connection will not burn;

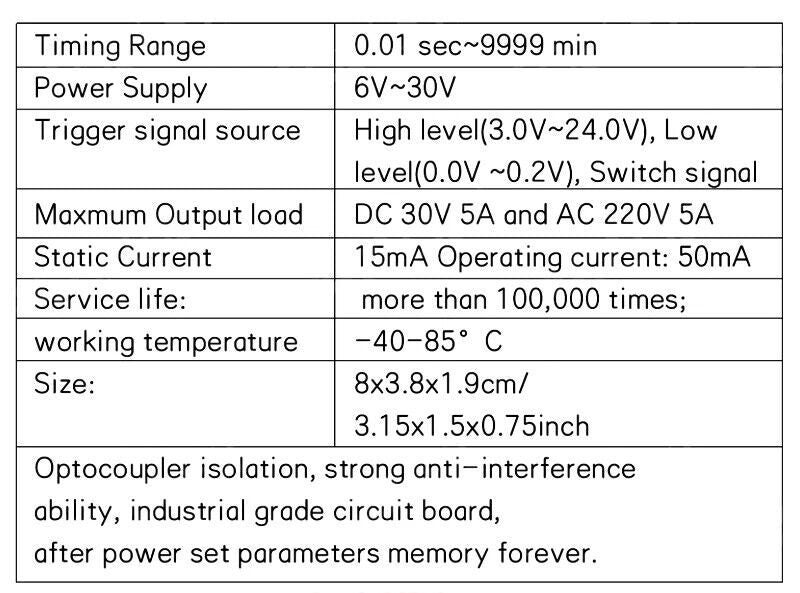

Specification: Working voltage: 6-30V power supply; Trigger signal source: high level trigger (3.0V-24V), Low level trigger (0.0V-0.2V), Switch control (passive switch); Output capacity: can control equipment within DC 30V 10A or AC 220V 5A; Quiescent current: 15mA; Working current: 50mA; Service life: more than 100,000 times; Working temperature: -40-85 ; Product size: 7.1x3.9x2.5cm Timing range: 0.01 second to 9999 minutes (peak value) continuously adjustable With optocoupler isolation, enhanced anti-interference ability, industrial-grade circuit board, set the parameter point and remember forever. Timing range: 0.01 second -9999 minutes

Package Included: 1 x Digital Time Delay Relay Module Control Switch Timing Trigger DC12V 12V LCD Instructions/schematic are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing..
