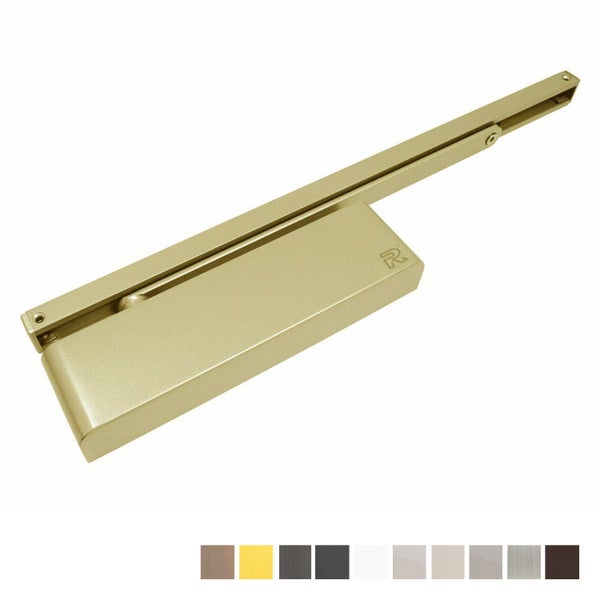

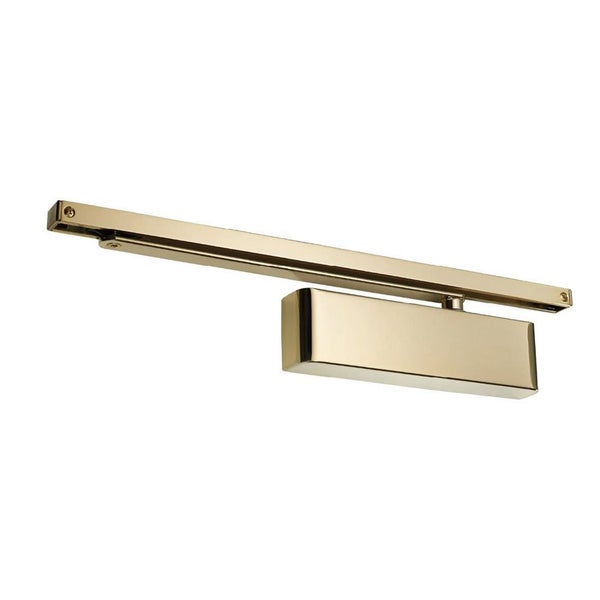

Zanda TS.9205.SRSA Door Closer Combined Unit

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Includes:

• 1 x TS9205 mechanism
• 1 x Slide Armset
• 1 x Semi-Radiused Cover

Features:

• Variable power adjustable EN2-5
• Suits doors up to 110kg and 1250mm wide
• Universal application can be fitted in Standard, Parallel arm or Transom fitting position
• Comes standard with delayed action and back check.
• Unique semi-radius cover for an architectural look make your project stand out
• Fire tested to Australian standards
• Ideal for disability compliant projects due to its ease of opening and efficiency
• Closing and latching speeds can be adjusted from the front of the mechanism
• Suitable for timber, metal and aluminium doors

Specifications:

Strength: EN2-5 up to 850mm to 1250mm and 45kg to 110kg

Mechanism: Rack and Pinion

Adjustable Closing Speed: Yes

Adjustable Latch Action: Yes

Adjustable Delayed Action: Optional

Adjustable Back Check: Yes

Max Door Width: 1250mm

Max Door Weight: 110kg

Opening Angle: 180 degrees

Left Hand and Right Hand Doors Universal Application: Yes

Fire Rated (BS EN 1634-1: 2000): Yes

Tested to BS EN1154: 1997: Yes

Available Finishes:

• Antique Brass
• Electro Brass
• Graphite Nickel
• Matt Black
• Matt White
• Polished Nickel Plate
• Satin Brass
• Satin Nickel Plate
• Silver
• Stainless Steel
• Weather Bronze
