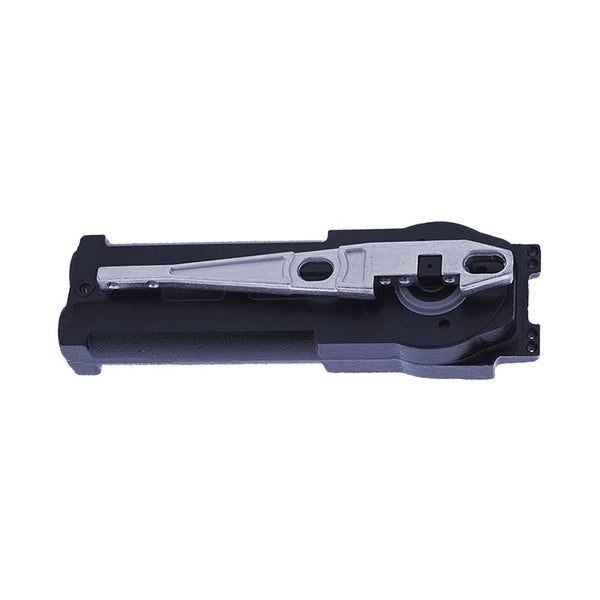

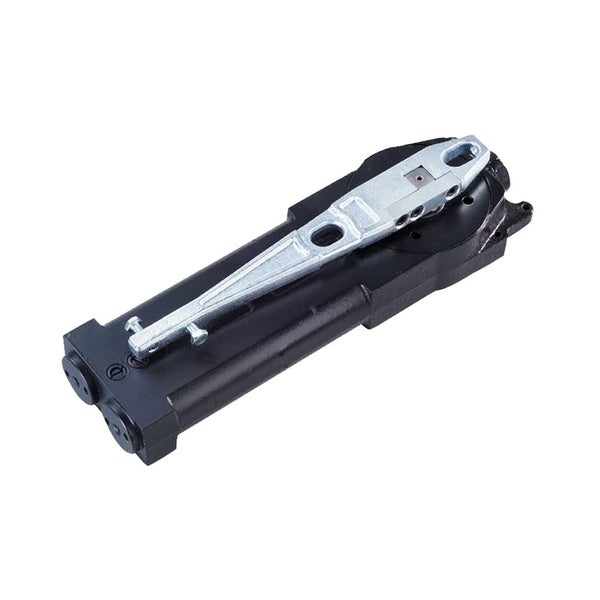

Lockwood 9800 Series Concealed Overhead Transom Door Closers

Lockwood 9800 Series Concealed Overhead Transom Door Closers provide a solution for applications where door control must be provided without disturbing the appearance of the door.

The closer fits into the transom above the door, most of the preparatory work is undertaken prior to installation, leaving minimal on site fitting. The fully concealed door closers are designed to provide positive centering and door control on manually operated single or double action internal and external doors in schools, hospitals, clubs, factories, offices and commercial buildings.

Features

• Suitable for both single and double action doors
• Adjustable closing and latching speeds
• All models feature easy to install side load design
• Fully adjustable, vertically within opening and central parking positions

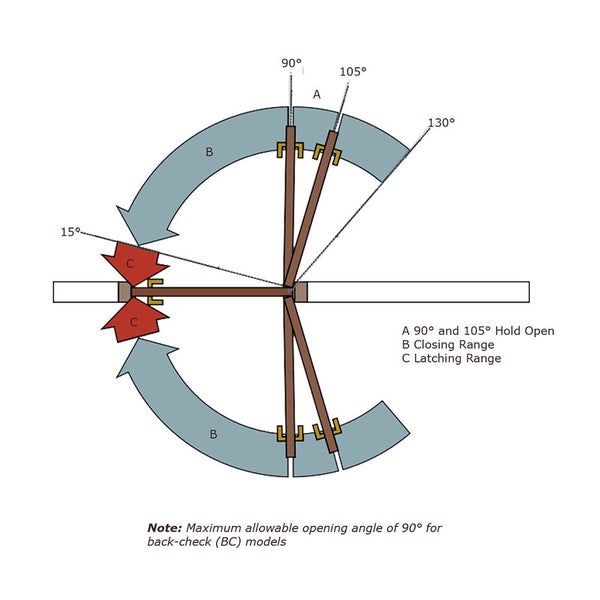

• Closing Angles130o to 15o
• Compact body size fits into 44.5mm x 100mm header section
• Suitable for fire, metal, timber and glass doors
• Power size 3
• Closing torque 21Nm
• Minimum door thickness 38mm
• Maximum door weight 115kg
• Maximum door width 1050mm
• Latching Angles15o to 0o
• Pivot Point70mm
• Stable hydraulic oil for a wide range of climatic conditions enabling constant operation
• Built in pressure release valve protects closer from rough use
• Suitable for a use on Fire Doors (refer local regultations)
• Supplied in trade pack

Available in Functions

• 90 Degree Hold Open
• 105 Degree Hold Open
• Backcheck Non Hold Open
• Hold Open For Timber Doors
• Non Hold Open

Note: Cover plate not included, if required order SP985-10. Fire Box not included, if required order SP985-20

Materials Furniture body: high grade cast iron Internal body: heat treated high alloy steel and ball bearings for optimum efficiency

Standards and Compliance Lockwood OTC series hydraulic door closers have been ...
