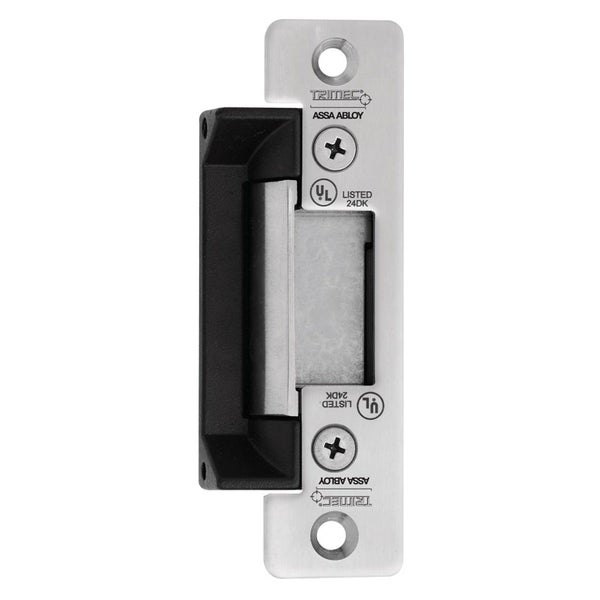

Trimec ES110 Electric Strike 110111-070M

Electric Strike intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.

Electric Strike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.

• Fail safe/fail secure changeable on site.
• The ES110 is a cost efficient robust electric strike with a solid construction of one-piece cast aluminium body and stainless steel striker.
• Having a deeper than normal strike-keeper area, ES110 is designed to work with an extensive range of locks and offers the same level of security and reliability usually provided by more expensive electric locking solutions.

Features:

• IP56 Weather resistant
• Fail safe/fail secure changeable on site
• Stainless steel striker for extra strength and durability
• Stainless steel locking pins
• Optional mounting kit
• Installation template
• Suitable For 18mm latch with a 3mm door gap
• TRICARE 5 Year Warranty

Applications:

• Exposed areas
• High traffic areas
• Open in/open out doors
• Suitable for use with all access control systems

Specifications:

Current: 250 mA at 12 Vdc to 125 mA at 24 Vdc

Drilled for Lip Extension: Yes

Field Selectable Fail Safe/Fail Secure: Yes

Holding Strength: 650 Kg

IP Rating: IP56

Working Voltage: 12 Vdc to 24 Vdc

Locking Mode: Fail Secure/Fail Safe

Standards and Compliance:

• Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1 (Part 1: Fire resistant door sets)
• For any fire rated applications of this product, the fire certification should be investigated and exam...
