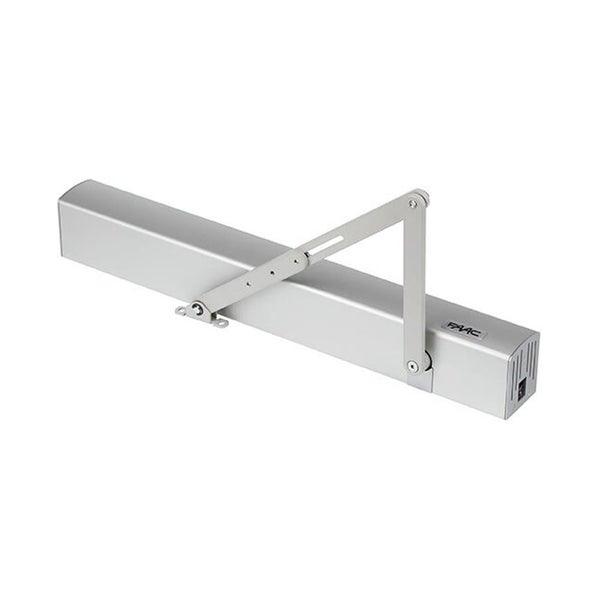

FAAC A951 Auto Door Operator Push Or Pull

Swing Door Operator used in new construction or retrofitted onto existing doors. designed for heavy duty use and traffic. Swing Door Operator Function - opens and closes the internal door silently and smoothly. Features:

• The housing cover is in anodized extruded aluminium
• Manufactured in compliance with the new European safety standards EN16005; speed and forced are programmed depending on door dimensions.
• Thanks to the accurate selection of mechanical and electronic components, the A951 automated system can silently drive leaves weighing 100 kg and1100-mm wide on continuous duty ensuring the absolute operating safety at any time
• Built-in microprocessor control unit with selfdiagnosis and continuous monitoring of all door functions
• Anti-crushing safety device active both in closing and in opening
• Integrated functions selector with the following operating logics: AUTOMATIC - MANUAL/NIGHT - OPEN
• aINTRUSIONa Function, the door opposes the manual opening attempt
• Selectable a~PUSH and GOa(TM) function
• KP EVO and LK EVO functions keyboard support
• Firmware upgrade and download/upload (configurations, timer and log) through USB key Specifications:

Max. Power: 100W *

Passage opening (mm): 700 A. 1100 *

Max. leaf weight with articulated arm: 100 Kg *

Max. leaf weight with sliding arm: 100 Kg *

Standby power: 5W *

Use frequency: 1 *

Electric lock power supply voltage: 25Nm *

Electric motor: Motor powered at 24V *

Max. accessories load: 1A a" 24V *

Electric lock power supply: voltage (N.O./N.C.) 24 V / 500 mA max. *

Length: 575mm *

Depth: 60mm *

Height: 70mm *

Weight: 7Kg *

Operation in case of power cut: Manual push/pull opening *

Max. leaf opening angle: 100 Degrees A. 125 Degrees *

Opening leaf time: 4 -10 sec (adjustable) *

Closing leaf time: 4 - 10 sec (adjus...
