Description

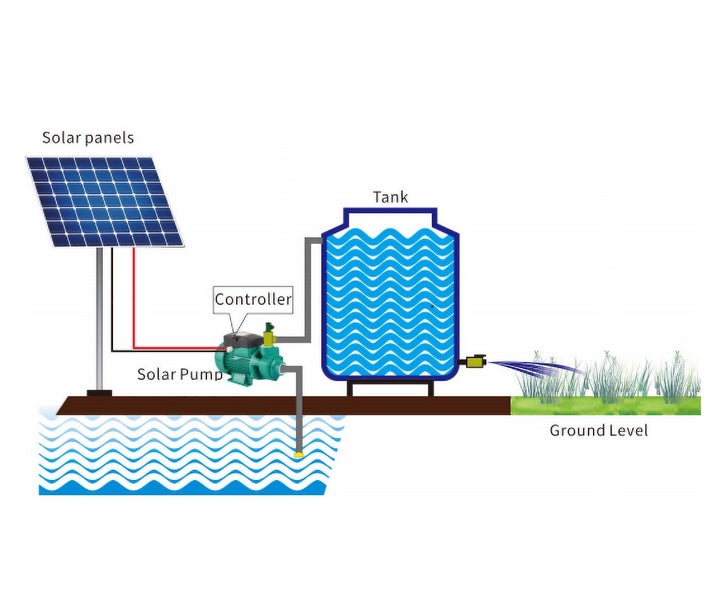

Our Solar Pumping System is designed for remote areas with unreliable or no electrical grid access. It uses a BLDC solar pump controller powered by DC from the PV array to drive brushless DC pumps. On sunny days, it continuously pumps water without batteries. Recommended for water storage.

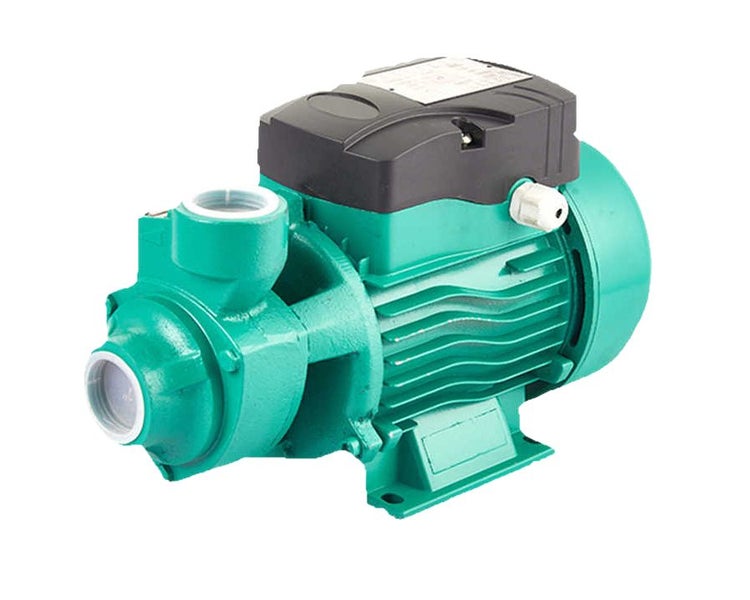

The portable QB pump has a built-in MPPT controller—no separate installation needed. Just connect panels to pump wires for seamless daytime operation, even on cloudy days.
Key Features:
Built-in MPPT controller. 1-year warranty. Max pumping distance: 50 meters. Reliable design operates under adverse conditions, adjusting output to protect components. Shuts down only in extreme cases, automatically restoring full operation when conditions improve.
Materials:
MOTOR: Full Oil Permanent Magnet Brushless DC Motor (Without Hall) CONTROLLER: 32-bit MCU / FOC / Sine Wave Current / MPPT Pump Body/OUTLET/INLET: Cast Iron MOTOR BODY: Die-cast Aluminium IMPELLER: Brass SCREW: Stainless Steel CABLE: 2m Three-core copper cable / 2.0mm2
Technical Specs:
Max lift water head: 25 meters Max flow rate: 2 m³/h Pipe diameter: 25mm Rated Voltage: 24 VDC Max Open Voltage: 80 VDC Under Protection Voltage: 17 VDC Over Protection Voltage: 50 VDC Rated Current: 12 A Over Protection Current: 15 A Peak Protection Current: 18 A MCU and Controller Mode: 32-bit MCU / FOC / Sine Wave Current / MPPT Cooling: Natural Heat Dissipation Operating temperature: -20? ~ +50?
Package Includes:
1X Solar pump with built-in MPPT controller 2X 200w 12V/24V/31.5V Mono Solar Panels (1440x680x30mm) 1x 5m Twin Core Solar Cable
