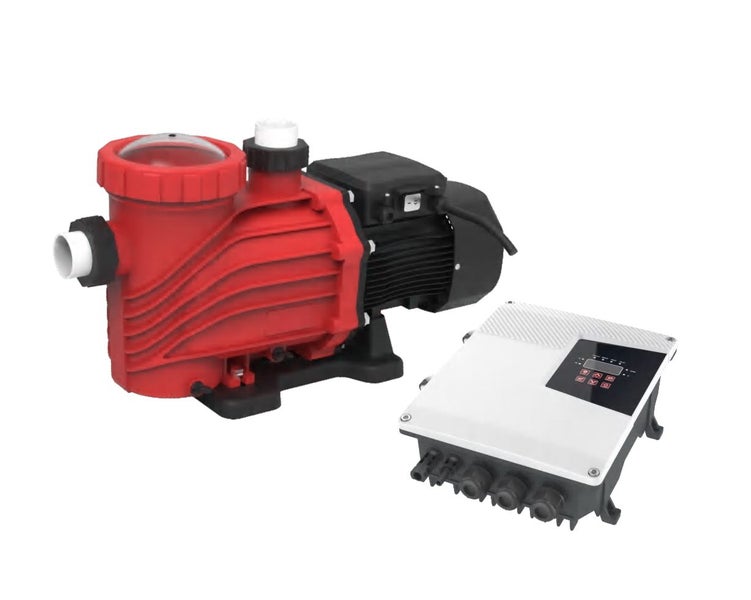

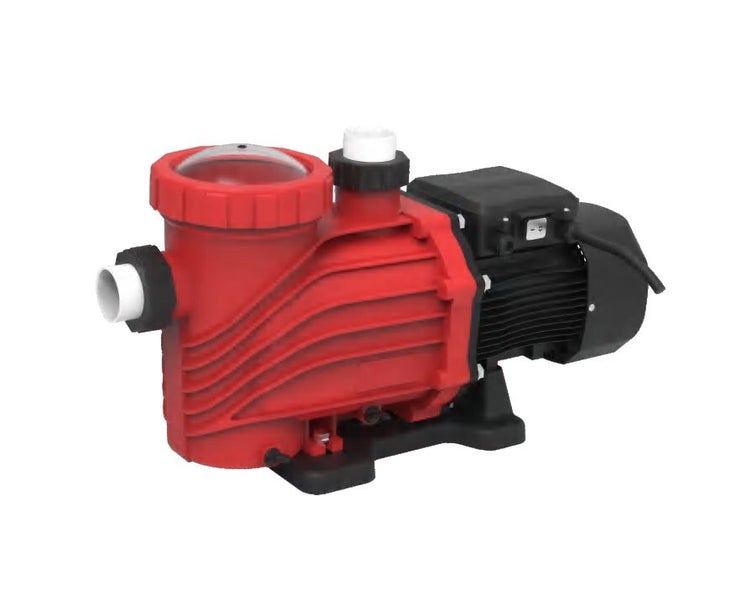

Designed specifically for solar water pumping applications, this high-performance pump offers a reliable and energy-efficient solution for remote and off-grid locations. Powered by DC voltage (80–400V DC), it’s perfectly suited for integration with photovoltaic solar panel systems, delivering eco-friendly operation without compromising performance.

Key Features: Brushless DC Motor – Maintenance-free and highly efficient Advanced MPPT Controller – Ensures maximum power output from solar panels Integrated DSP Control – For precise and stable performance Speed Control – Adjustable motor speed to match demand Soft Start Protection – Reduces wear and prolongs motor life Dry Running Protection – Prevents damage when water supply is low Reverse Polarity Protection – Safeguards against incorrect wiring Short-Circuit & Overcurrent Protection – Enhances operational safety Low & Over Voltage Protection – Ensures stability and protects components Temperature Protection – Prevents overheating during long operation Compatible with Battery Systems – Supports battery backup and low-voltage disconnect

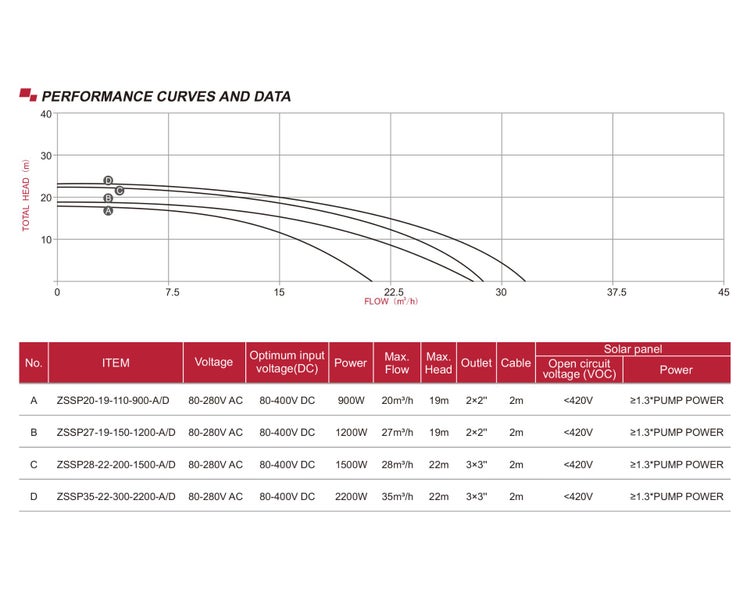

Technical Specifications: Model: ZSSP35-22-300-2200-A/D Operating Voltage: 80–280V AC / 80–400V DC Power Rating: 2200W Max. Flow Rate: 35 m³/h Max. Head: 22 meters Outlet Size: 3 × 3” Cable Length: 2 meters

Solar Panel Requirements: Open Circuit Voltage (VOC): <= 420V Recommended Power: >= 1.3 × Pump Power
