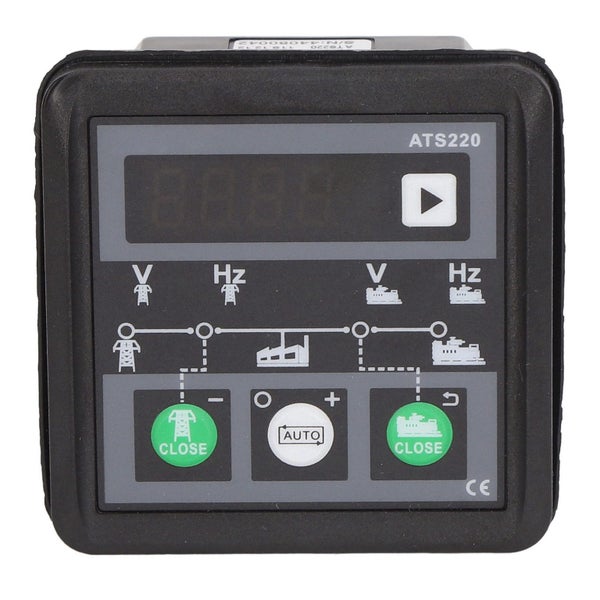

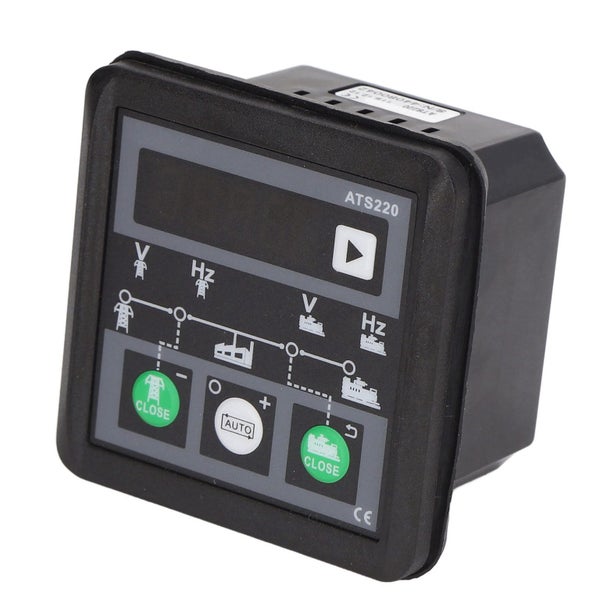

Specification: Item Type: Automatic Transfer Switch Controller Model: ATS220 Material: ABS Function: For power switching control. Display: LED Normal Mains Power Delay: 0-6500s, Default Value: 10s. Abnormal Mains Power Delay: 0-6500s, Default Value: 5s. Normal Power Generation Delay: 0-6500s, Default Value: 10s. Start Up Delay Of Generator Set: 0-6500s, Default Value: 1s. Shutdown Delay Of Generator Set: 0-6500s, Default Value: 5s. Closing and Opening Pulse Width: 1.0-10.0s, Default Value: 10.0s. Conversion Interval Delay: 0-3600.0s, Default Value: 1.0s. Overconversion Delay: 0-20s, Default Value: 20s. Generator Over Frequency Alarm Value: 40-80.0Hz, Default Value: 57.0Hz. Generator Underfrequency Alarm Value: 0-70.0Hz, Default Value: 40.0Hz. Generator Overvoltage Alarm Value: 0-360V, Default Value: 264V. Generator Undervoltage Alarm Value: 0-360V, Default Value: 192V. Enabled Closing Status Input: 0 - Disable Mains Frequency Indication: The indication is the current displayed parameter value is mains frequency. Generation Frequency Indication: The indication is the current displayed parameter value is the generation frequency. Indication of Mains Closing: It will be on when mains closing is effective. Power Generation Closing Indication: Lighting up when power generation closing is effective. Automatic Mode Indication: Lighting up when working in automatic mode and turns off when working in manual mode.

Package List: 1 x Automatic Transfer Switch Controller<div>2 x Wire Terminal</div><div>2 x Fixing Screw</div><div>1 x User Manual</div>

The delivery time is around 10-20 working days after your purchase
