Description

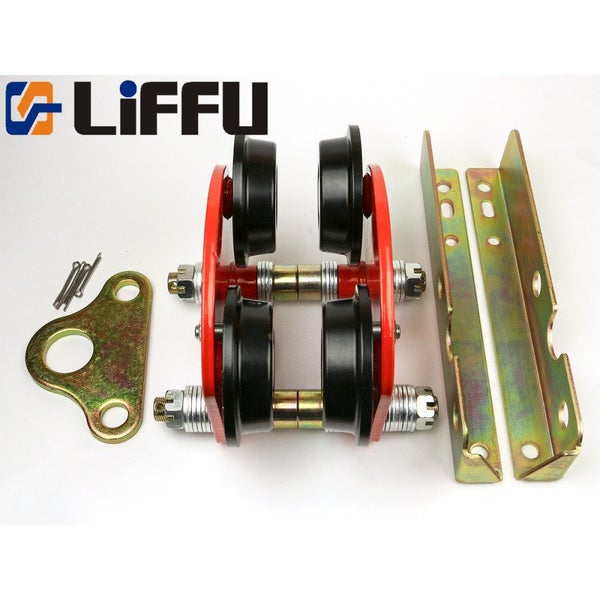

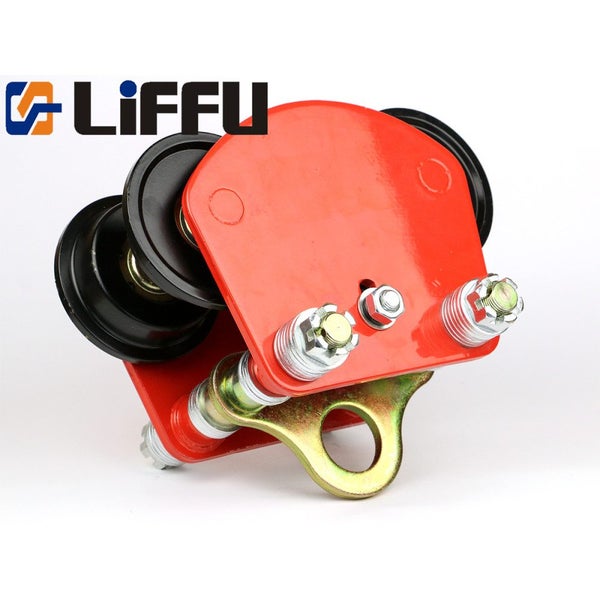

Liffu does the heavy lifting for you. We have a range of electric chain hoists, wire rope hoists, scaffold hoists, remote control hoists, i-beam trolleys, and other types of lifting equipment to suit all your lifting and handling needs. This unpowered trolley runs on an overhead I-beam from which you can hang a chain block, electric chain hoist, or lever hoist. Brackets are also included for attaching any size mini electric hoist from PA200 to PA1200. It should be installed on a suitably rated i-beam (RSJ or H-section) with a bottom flange width of 68-110mm^. It can be installed at any point on the beam, end of beam access is not required. FEATURES > Hardened steel wheels > Sealed wheel bearings > Hook loop for chain blocks and lever hoists > Adjustable anti-tip bearings SPECIFICATIONS Maximum load 1200Kg I-beam width 68-110mm^ Conical wheel diameter 75-82mm Overall wheel diameter 105mm Size without brackets 210L x 200W x 200H mm Weight 12Kg STANDARDS European 2006/42/EC EN14492-2 and EN60204-32 CE, GS, EMC, and RoHS INCLUDES Plain trolley Electric hoist mounting brackets Hook mounting loop User manual NOTES > Also known as a push trolley, gantry trolley, or girder trolley. > Can also be used as a pipe trolley on 55mm O.D. tube. ^ Can be used on wider I-beams if the bolts are replaced with longer 19mm high tensile bolts.
