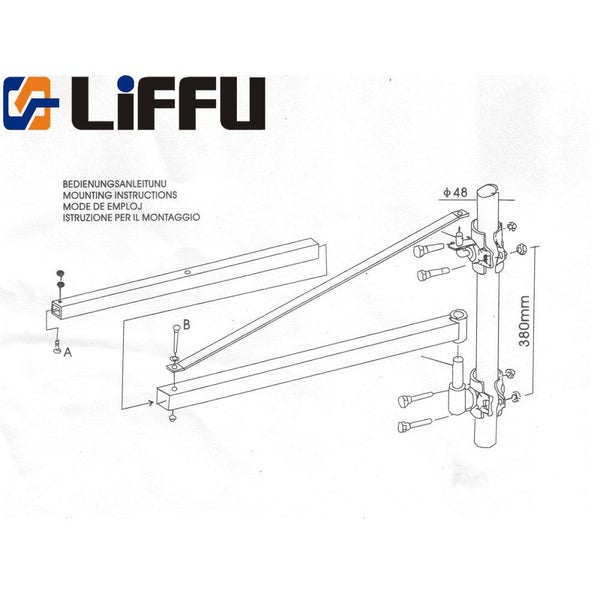

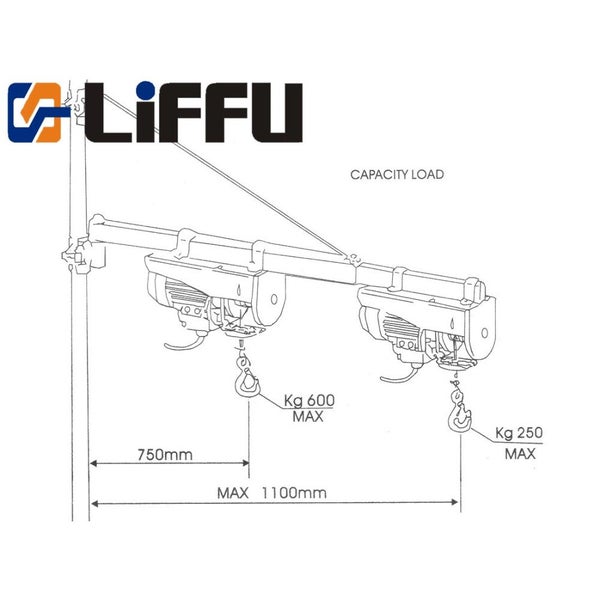

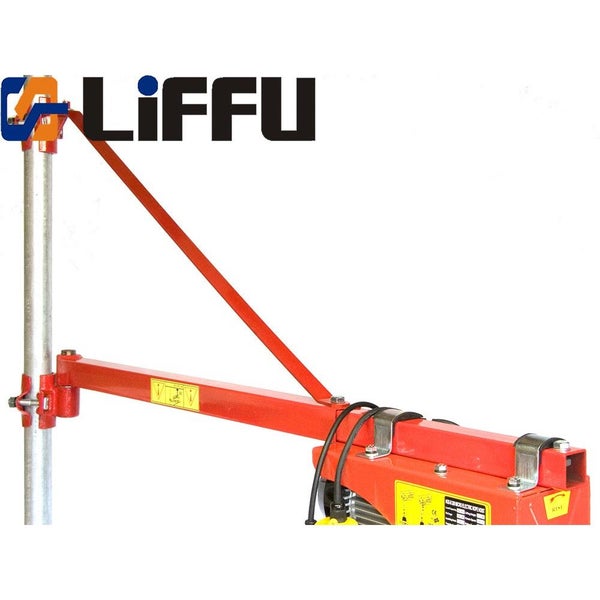

Liffu does the heavy lifting for you. We have a range of electric chain hoists, wire rope hoists, scaffold hoists, remote control hoists, i-beam trolleys, and other types of lifting equipment to suit all your lifting and handling needs. This swing arm bolts to commonly available scaffold pipe and tube with an outside diameter of up to 50mm. It makes it easier to swing your load to the side once you get it raised to where you need it. SPECIFICATIONS Maximum load 600Kg at 750mm from pivot Maximum load 250Kg at 1100mm from pivot Main arm length 750mm Extended arm length 1100mm Main arm 45mm box section Extension arm 40mm box section Pivot arc range 300 degrees Distance between clamps 380mm Clamps on 50mm max O.D scaffold tube Weight 7.5Kg INCLUDES Clamping U-bolts Pipe clamp pivots Nuts and spring washers User manual NOTES > The maximum hoist size at 1100mm from the pivot is 250Kg. Larger hoists can be used if the support bar hole is re-drilled so the hoist can lay flat against the arm. This is because hoists over 250Kg have a longer body. > Does not fit scaffold tube over 50mm in diameter (some aluminium scaffold tubes). Check your tube size before ordering. > This item may at times be supplied in silver. > Electric hoist not included.
