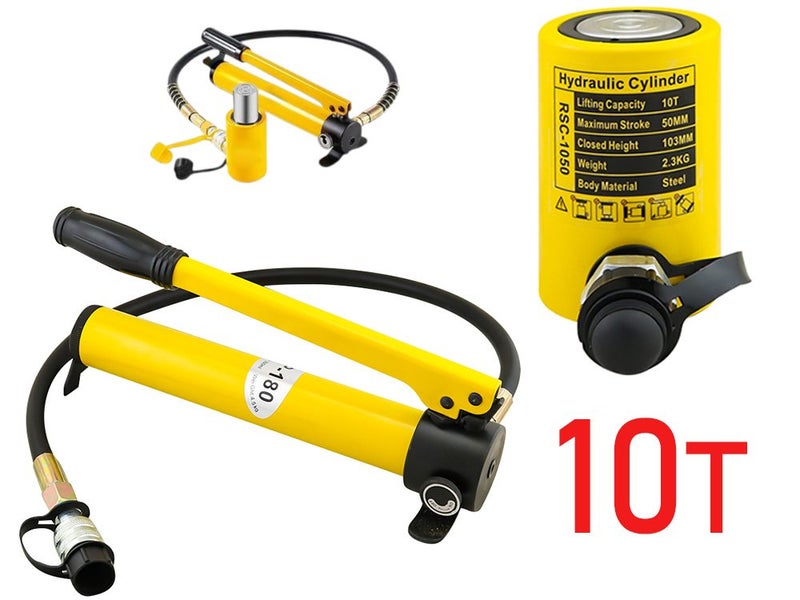

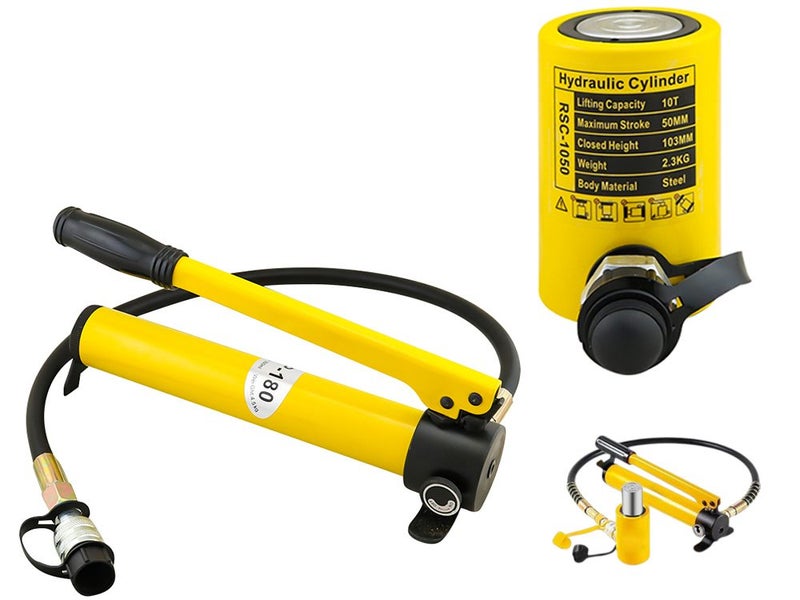

High-Capacity Manual Hydraulic Jack – 10 Ton Load with Pump & Oil Pipe
Take on heavy lifting tasks with ease using this powerful Hydraulic Jack system. Made of high-quality steel and built for performance, this Hydraulic Jack supports a load capacity of 10 ton, making it ideal for maintenance, construction, and installation work across industries such as power, chemical, steel, and bridge engineering.
Key Features: High Load Capacity: This Hydraulic Jack boasts a 10-ton capacity, suitable for lifting large machinery, vehicles, or structural components. Durable Construction: Built from thickened steel with a chrome-plated spindle and sprayed surface, this Hydraulic Jack is rust-resistant and long-lasting. Easy to Use: Simply connect the oil pipe, turn the pump knob to OFF, and press the handle to raise the jack. Releasing the load is just as simple—turn the knob to ON. Safety First: Anti-slip rings on the spindle and a stop ring prevent sliding or overextension. The steel ball joint in the interface prevents oil leakage. Ergonomic Design: The pump handle features a convex, anti-slip pattern for better grip. Multi-Angle Functionality: Use vertically, horizontally, or even upside-down to adapt to different lifting environments.
Specifications: Load Capacity: 10T / 22,046 lbs Stroke: 5cm / 1.97" Oil Storage: 72cc Max Pressure: 70 MPa Color: Yellow & Black Material: Steel Jack Size: 14 x 7.5 x 10 cm Stroke: 50mm Collapsed Height: 102 mm Extended Height: 15 2mm Outside Diameter: 60 mm Inner Diameter: 45 mm Equipped: R2 3/8 Joint Effective Area: 6.3 inch Gross Weight: 6.5kg
What's Included: 1 x Hydraulic Jack 1 x Hydraulic Pump 1 x Rubber Oil Pipe 1 x Instruction Manual
Applications: The Hydraulic Jack is perfect for railway maintenance, mechanical installation, structural support in construction, and more. Whether you're a professional technician or handling DIY tasks, this reliable Hydraulic Jack will help you get the job done efficiently and safely.
