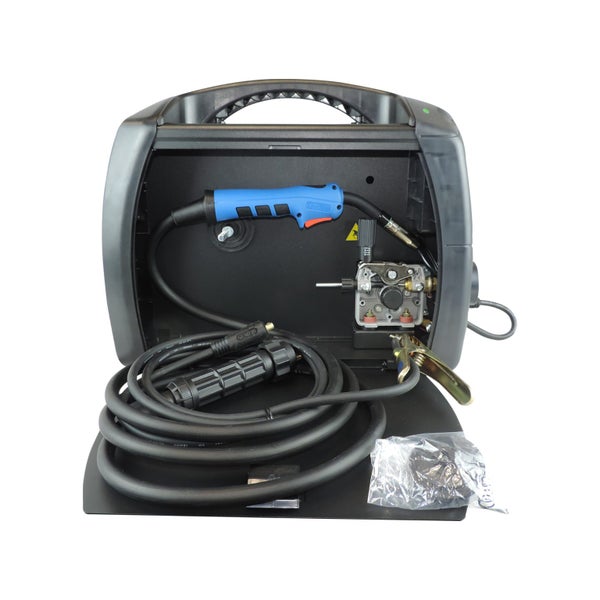

ToolShed Inverter Portable MIG/TIG/ARC Welder with Digital Display.

Have you ever been in that situation where you know you need to weld something but have no idea what the correct settings should be? This machine sorts that problem out for you. With the intelligent electronics and easy to use LCD colour display you can select from the following welding processes:

• Mild steel MIG welding using gasless wire CO2 or Argon/CO2 mixed gas
• Aluminium MIG welding with the optional spool gun (TSW20MGUN)
• Stainless steel MIG welding
• DC TIG welding
• DC ARC welding

Click through the menu and it will tell you what the polarity should be and where to connect the leads. Click through again and it will ask you what size MIG wire/Electrodes/Tungsten you have connected. From there it calculates what thickness of material you can weld with those parameters. Once you have selected the material thickness it automatically calculates what current/wire feed speed and voltage you need based on your setup. It is quite impressive.

This setup is great for schools automotive panel shops farmers or anyone that knows how to weld but doesn't do it every day and forgets some of the setup settings. You can also make fine adjustments to get it perfect and save settings if you use them a lot.

It offers the user a 200-amp DC gas/gasless MIG welder. Plus - a 180-amp DC ARC welder (lead included) Plus - a 180-amp DC TIG welder (lead included)

This MIG welder is top of the line. Fitted with a high-quality wire feed system this machine is very smooth and doesn't encounter the problems often found with cheaper wire feed units. The output current goes as low as 10-amps which makes it ideal for small panel-steel work. Its polarity can also be reversed easily so that gas and gasless wire can be used. It can take 1kg to 5kg spools of MIG wire. With the flick of a switch and attaching the ARC lead this machine can be set up as a full DC ARC welder offering a current range from 10-180 amps which is suitable for running electrodes
