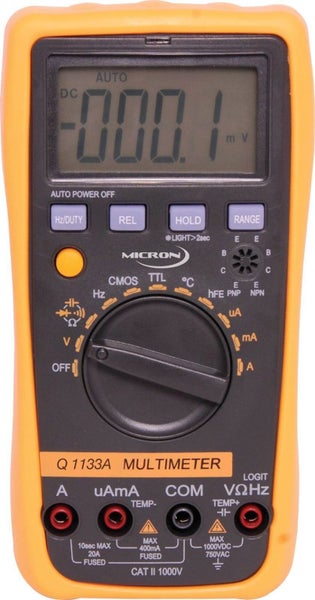

Featuring large, easy to read 20mm digits, this quality mini auto ranging meter is ideal for mobile technicians, installers or enthusiasts who want excellent performance and functions at an affordable price. Supplied with test leads, rubber holster and temperature probe.

Features Manual override of auto-ranging Range hold & data hold Auto power off Temperature measurement sensor included) Continuity buzzer Diode tester Frequency 1Hz - 30MHz Battery included CMOS and TTL logic testing Cat II 1000V

Specifications Voltage ac: 400mV, 4V, 40V, 400V, 600V (0.8%+6d) Voltage dc: 400mV, 4V, 40V, 400V, 600V (0.5%+4d) Current: 400A, 4000A, 40mA, 400mA, 20A (dc 1.0%+10d), (ac 1.5%+10d) Ohms: 400, 4k, 40k, 400k, 4M, 40M ohm (0.8%+1d) Temperature: -20C to 1000C (1.0%+10d) Freq. range: 1Hz to 30MHz (0.5%+4d) Continuity: Less than 50ohm (10ohm) Capacitance: 4nF, 40nF, 400nF, 4F, 40F, 200F 3(3.5%+8d) Transistor test: Measures hFE Diode test: Included Display: 3.75 digit LCD, 3999 count Protection: 20A M205 fuse on 20A Dimensions: 86W x 35D x 170H mm Q1133A
