RAM-D-254-C-235U RAM(R) Double U-Bolt Rail Mount with Round AMPS Plate

Features

• 2.5" round plate connects to RAM(R) device holders containing the universal AMPS hole pattern
• Double U-Bolt accommodates rails from 25.4 to 31.75mm diameter
• Included D size RAM(R) double socket arm has ball and socket technology for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

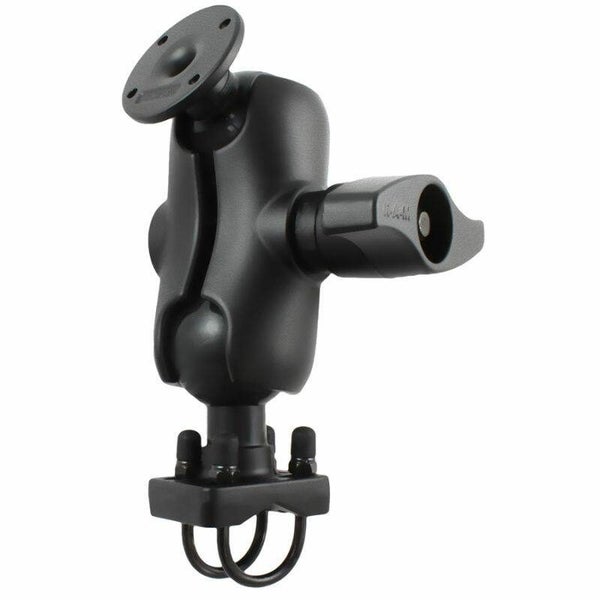

This consists of the double U-Bolt rail mount, with a short arm and a round base plate with AMPS hole pattern.

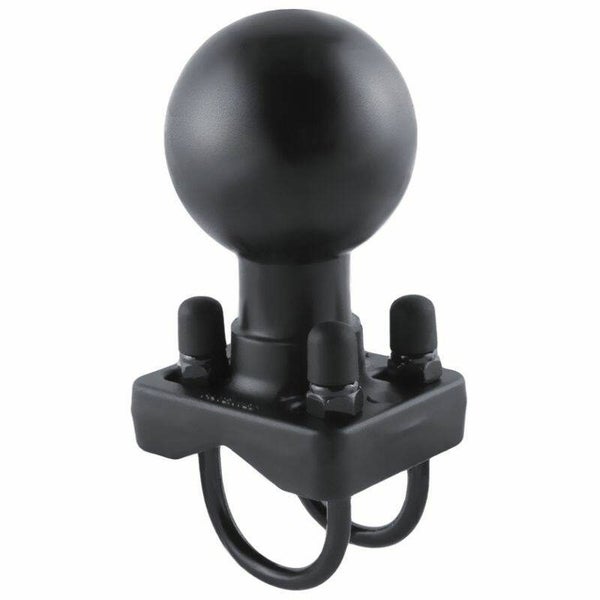

The rail/post base consists of a double u-bolt base with 2.25" diameter ball and two stainless steel u-bolts. The double u-bolt base will accommodate rails from 25.4 to 31.75mm (1 to 1.25") in diameter.

Note: This mount includes stainless steel u-bolts for preventing rust of the mount and black cover caps to be placed over the exposed ends of the u-bolt.

The short double socket arm, has a socket at both ends that accommodates 2.25" ball bases. A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection. This socket technology allows for almost infinite adjustment and perfect viewing angles.

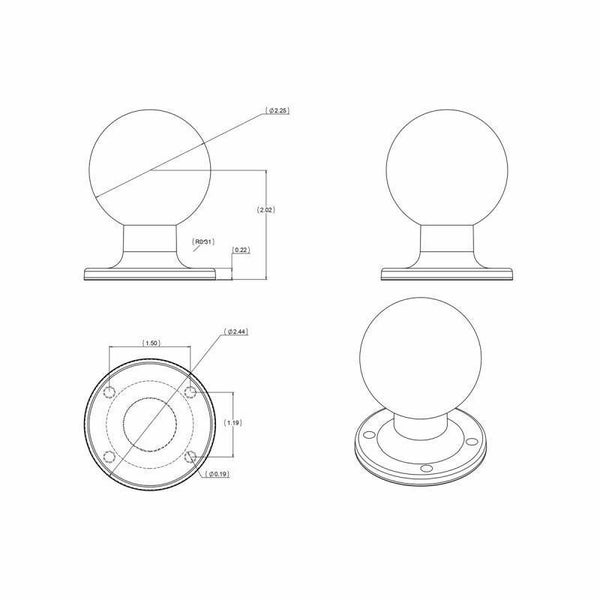

The 61.9mm (2.4375") round plate incorporates the 4-Hole AMPS pattern to connect to most RAM cradles. It also includes two holes at 180 degrees.

Specs & Features

Round Base Hole Pattern 4-Hole AMPS: 1.181" x 1.496" (30mm x 38mm)

U-Bolt Dimensions: Accommodates rails from 25.4 to 31.75mm (1.0" to 1.25") in diameter

Arm Dimensions: Overall Length: 128.6mm (5.0625") Socket-To-Socket Length: 87.0mm (3.1875")

HARDWARE INCLUDED (2) 1/4"-20 U-Bolts for 1" - 1.25" Rails (4) 1/4"-20 Nylock Nuts (4) Rubber Caps

Ball Size: D Size 2.25" Rubber Ball

Weight: 1.29kg (2.85 lbs)

Weight Capacity Standard Use: 2.72kg (6 lbs) Heavy-Duty Use: 2.26kg (5 lbs)

Material: Powder Coate...
