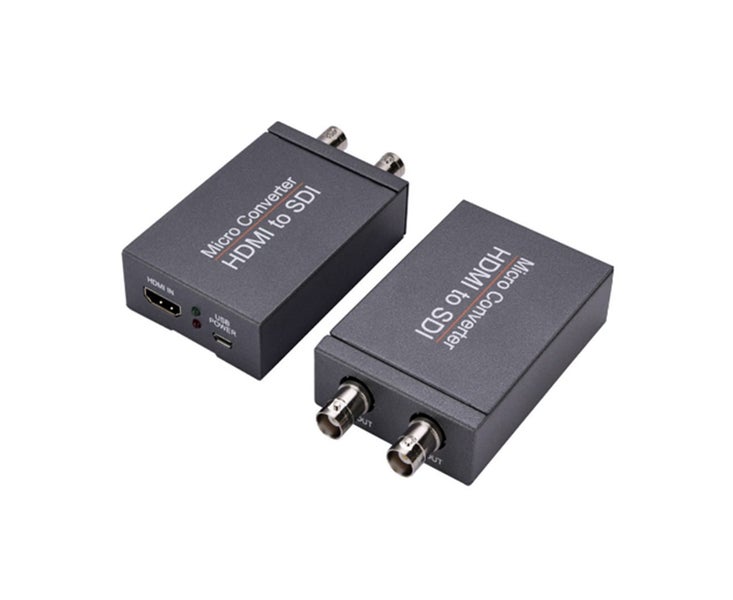

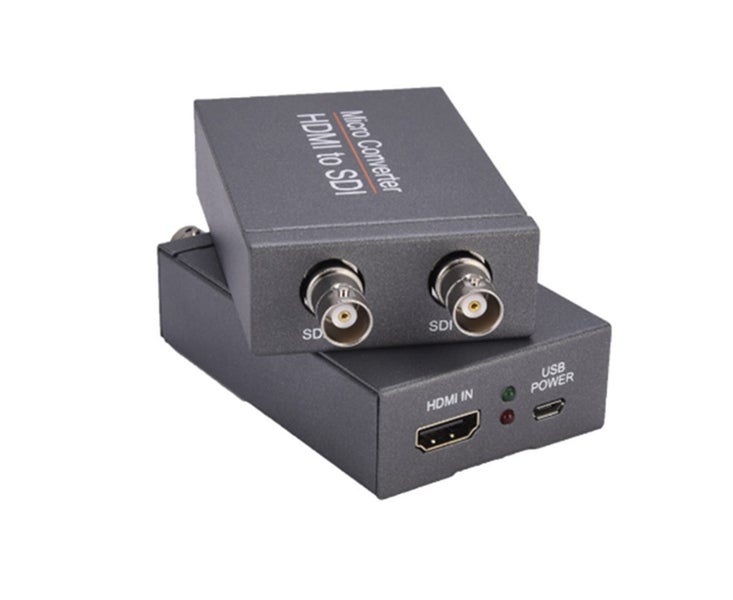

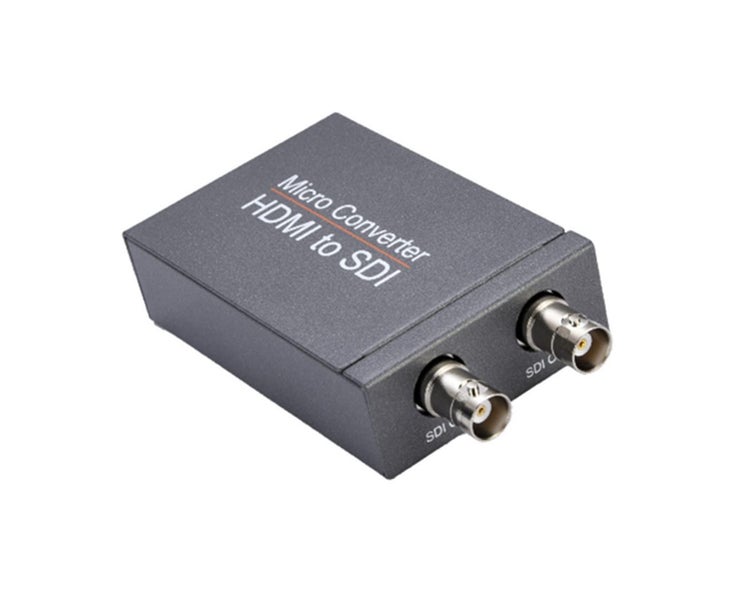

The Micro HDMI to SDI Converter allows HDMI signals to be shown on two SDI display while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on two SDI display.

FeaturesLs Shows HDMI source on two SDI display. SDI interface operates at bitrates of 2.970 Gbit/s, 1.485 Gbit/s. Supports HDMI input timings: 480i, 576i, 720p, 1080i, 1080p. Converts HDMI signal to SDI: 720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s) 1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s) Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

PackageLs HDMI to SDI Converterx1 USB Power Supply Cablex1 Operation Manuax1

Features: Product name: converter Weight: 200g Material: ABS Input Port: 1 x HDMI Output Port:2 x BNC (HD-SDI/3G-SDI) Power Supply DC 5V ESD Protection Human body model 8kV (air-gap discharge) , 4kV (contact discharge) Dimension:97mm x55mm x 23 mm Weight:130g Operating Temperature:0oC ~ 40oC / 32oF ~ 104oF Storage Temperature:20oC ~ 60oC / -4oF ~ 140oF elative Humidity:20 ~ 90% RH (Non-condensing) Power Consumption:(Max) 5W

Delivery Time is 10-20 Working Days from Our Overseas Warehouse
