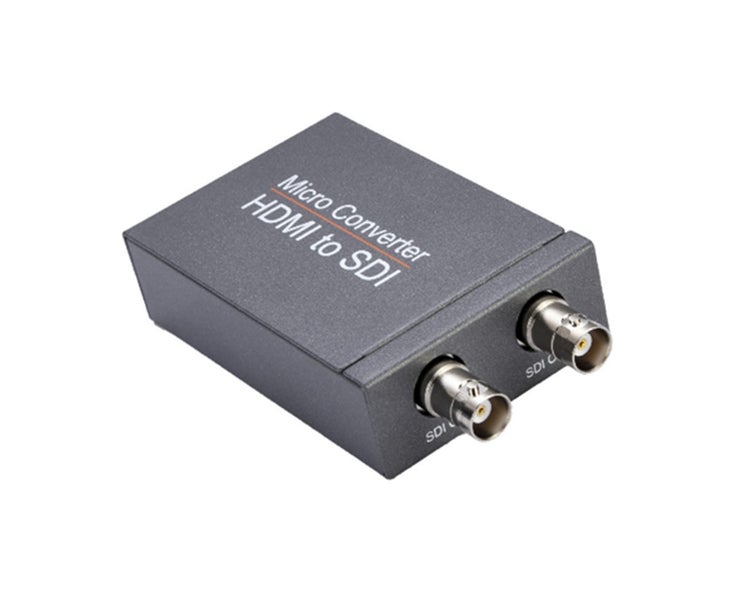

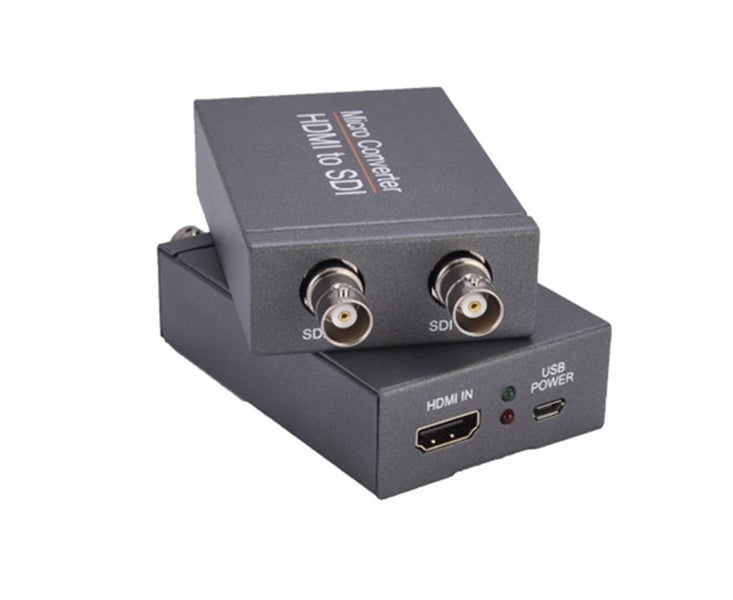

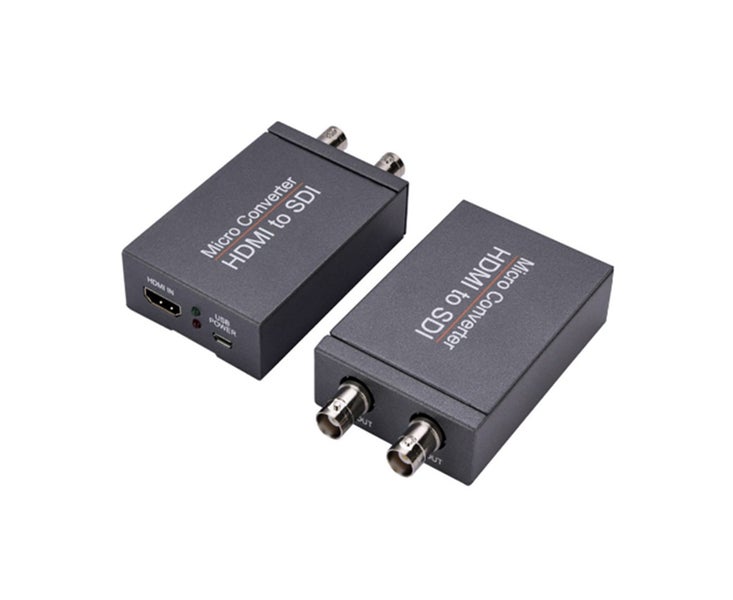

The Micro HDMI to SDI Converter allows HDMI signals to be shown on two SDI display while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on two SDI display.

FeaturesLs Shows HDMI source on two SDI display. SDI interface operates at bitrates of 2.970 Gbit/s, 1.485 Gbit/s. Supports HDMI input timings: 480i, 576i, 720p, 1080i, 1080p. Converts HDMI signal to SDI: 720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s) 1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s) Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

PackageLs HDMI to SDI Converterx1 USB Power Supply Cablex1 Operation Manuax1

Features: Product name: converter Weight: 200g Material: ABS Input Port: 1 x HDMI Output Port:2 x BNC (HD-SDI/3G-SDI) Power Supply DC 5V ESD Protection Human body model ±8kV (air-gap discharge) , ±4kV (contact discharge) Dimension:97mm x55mm x 23 mm Weight:130g Operating Temperature:0°C ~ 40°C / 32°F ~ 104°F Storage Temperature:20°C ~ 60°C / -4°F ~ 140°F elative Humidity:20 ~ 90% RH (Non-condensing) Power Consumption:(Max) 5W

Estimated delivery timeLsAbout 10 business days.We will use standard shipment for the orders. Normally it may need about 10 days, but sometimes please note: Delivery times are as provided by our carriers and are estimates only. Delays may occur during peak periods, and due to factors outside the carriers control.
