Description
This DSP4100 cat-6 Gigabit analyzer finds the problem, and where it is.
Don't just test: verify if the cable passes the actual standards
Demo video below

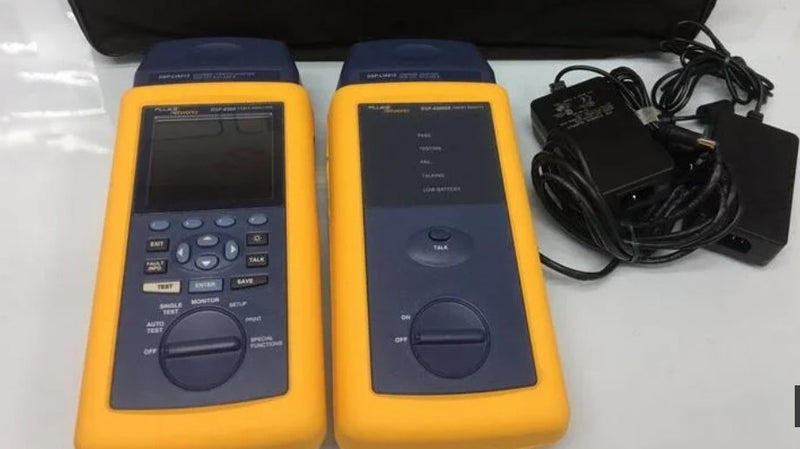

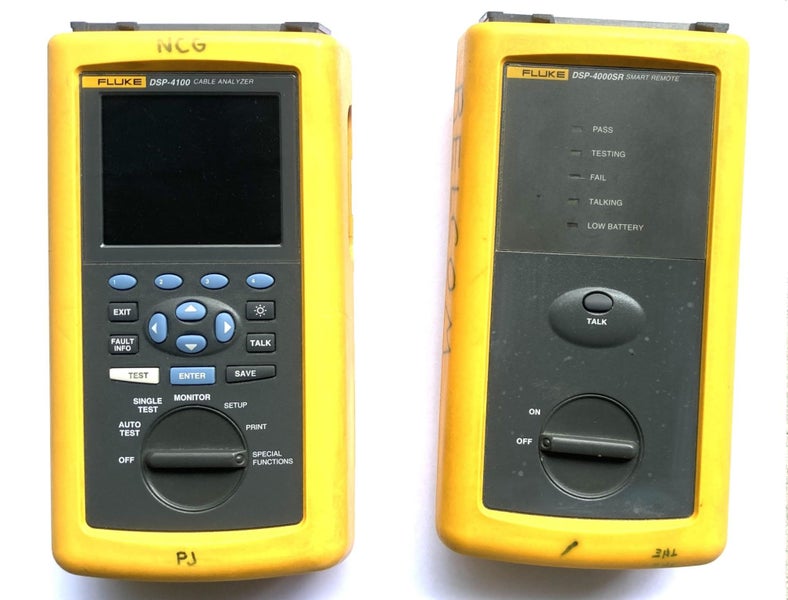

NOTE: The first image is of the actual item, and the image with the soft case is not the actual item, but shows what the case is like.
Not just pass/fail result like cheaper testers, but measurements with recommendations. Unfamiliar with the graphs? Limits drawn on them show you by how much the cable has exceeded or failed the standards
Try doing that with a $300 cable tester that only shows a pass/fail result to an unknown threshold, and distance to only the start of the bad section
Win10 PC software stores results:
- Prove your workmanship to customers
- Compare result with previous tests, e.g is water ingress getting worse?
Manual etc: https://tinyurl.com/dsp4100-tg
Tests: TDR graph Wire Map Resistance Length Propagation Delay Delay Skew Impedance NEXT (Near-end Crosstalk) Attenuation ACR (Attenuation to Crosstalk Ratio) RL (Return Loss) PSNEXT (Power Sum NEXT)
Don't worry if you don't understand all the tests; the DSP-4100 will report against chosen test standard (e.g. cat-6 cat-5e ISO/IEC_11801 Class D 1000BASE-T Gigabit), and the manual teaches general fault finding
Can apply a tone to the cable, so your probe can identify it among others, or trace exactly to the problem
Tests other cable types, e.g co-ax, custom
It is a lot cheaper than Fluke's current models (>$12,000)
Included: -Warranty -Cable Analyser and Smart Remote - each with NEW rechargeable battery and module for testing cat-6 RJ45 -Charger with NZ mains plug -Self-test cable -PC Software -PC link cable
- Soft case NOT Fluke - it's a generic brand instead
Supplied pre-calibrated, so is ready to use
Not sure if it will suit? Return within 2 weeks for full refund of item cost.
In stock in NZ
No liability accepted beyond full refund of item and shipping
Can pickup from Cambridge
