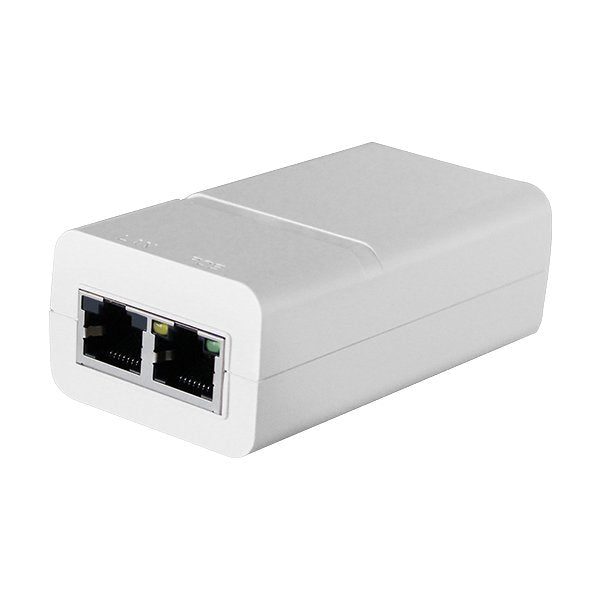

24V DC 30 WATT GIGABIT PASSIVE POWER OVER ETHERNET SUPPLY

Procet 24V DC 30 Watt Gigabit Passive Power over Ethernet Supply. The EN30G-24 is an indoor rated PoE midspan Injector specially designed for complex backhaul and networking applications. It provides 24Vdc, 1.2A power for remote PDs over 2 pairs output. It supports both 10/100 Base-T and Gigabit device. It works for 28W PoE PDs, such as wireless APs, Wifi routers, Network cameras, IP Phones, Microwave Radio and other power Ethernet terminals. Enclosed in an IP40 fire retardant plastic case. It works with a wide input voltage of 100-240 VAC, 50 or 60 Hz. Compliant with Level VI Energy Efficiency requirement.

FEATURES

Output: 24Vdc 1200mA 30W

Transmission Rate: 10/100/1000Mbps

Power Pin:4/5(+),7/8(-)

SPECIFICATIONS

Manufacturer's Product Code: PT-EN30G-24

Standards: IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet,

IEEE802.3ab 1000Base-T Gigabit Ethernet, RoHS Compliance, WEEE Compliance

Input: 100-240Vac 1.0A 50/60Hz

Output: 24Vdc 1200mA

Power Pins: 4/5(+), 7/8(-)

Data Speed: 10/100/1000Mbps

Operating Temperature: 0 deg C to 40 deg C

Operating Humidity: 20% to 80%, non-condensation

Storage Temperature: -20 deg C to 70 deg C

Storage Humidity: 10% to 90%, non-condensation

Operating Altitude: Up to 2000meters

AC Surge Protection: Line-Earth 1.2/50us (8/20us): 2KV, Line-Line 1.2/50us (8/20us): 1KV

LED Indicator: Power Indicator: Yellow, PoE Load Indicator: Green

Case: Plastic

Color: White

IP Rated: IP40

Size: 95.3mm X 51mm X 34.5mm

Weight: 150g

PACKAGE CONTENTS

1 x 24V Dc 30 Watt Gigabit Passive Power Over Ethernet Supply 1 x NZ 3 Pin Clover Lead
