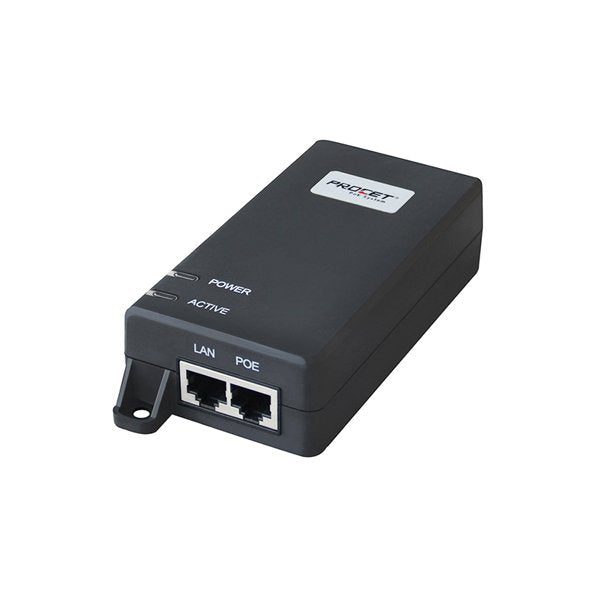

PROCET 55V DC 60 WATT 10 GIGABIT 802.3BT POWER OVER ETHERNET SUPPLY

Procet 55V DC 60 Watt 10 Gigabit 802.3bt Power over Ethernet Supply. PT-PSE104GB-60-10 is a single port PoE Injector. It provides 55Vdc, 1.1A power for remote PDs over 4 pairs output. It supports not only 10/100/1000Mbps of data speed, but also 2.5GbE/5GbE NBase-T. It works for 60W PoE PDs, such as wireless APs, Network cameras, IP Phones and other high power Ethernet terminals.

It fully complies to IEEE802.3af/at, PoE++ standard. PT-PSE104GB-60-10 is designed for indoor use. It works with input voltage of 100-240Vac. It has detection chip inside, which will detect and classify PD before powering it. It will not apply power until a standard-compliant PD is detected. The effective distance is 100 meters over Cat5e/Cat6 cables.

FEATURES

Input Voltage: 100-240Vac 1.5A 50/60Hz

Output Power: 60W guarantee

PoE++ compliant, backwards compatible with IEEE802.3af/at

10GBit/s, IEEE802.3bz

Power for 802.11ac Wave 2 Access Points, Pan-Tilt-Zoom (PTZ) Cameras and Video-Phones

Compact design, smaller in size: 145.51mm X 65.8mm X 33.5mm

Automatic detection and protection of non-standard devices (Active)

Low power devices receive only the power they need

UL, CE, FCC certificate

SPECIFICATIONS

Manufacturer's Product Code: PT-PSE104GB-60-10

Input: 100-240Vac 1.5A 50/60Hz

Output: 55Vdc 1100mA

Power Pins: 4/5(+), 7/8(-) & 3/6(+), 1/2(-)

Data Speed: 10/100/1000Mbps & 2.5/5/10GbE

Operating Temperature: 0degC to 40degC

Operating Humidity: 20% to 80%, non-condensation

Storage Temperature: -20degC to 70degC

Storage Humidity: 10% to 90%, non-condensation

Operating Altitude: Up to 2000meters

Standards: IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3ab 1000Base-T Gigabit Ethernet, IEEE802.3bz 2.5GbE/5/10GbE NBASE-T, Full compliant with IEEE802.3af/at, PoE++, RoHS Compliance, WEEE Compliance

EMI: FCC ...
