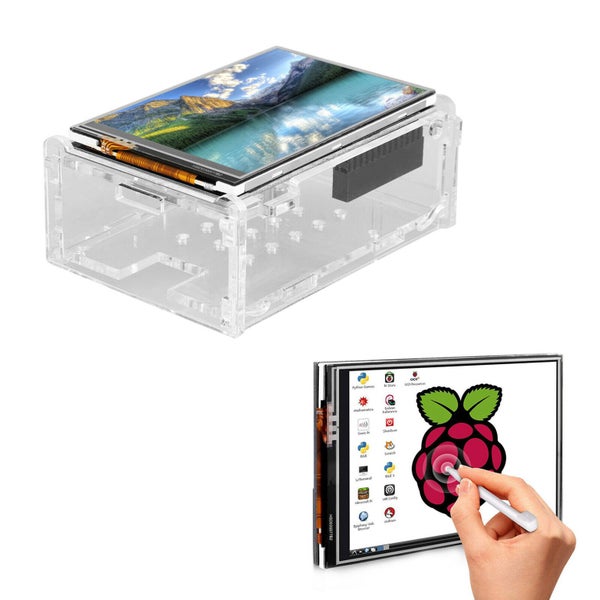

3.5" LCD Touch Screen Display Module Acrylic Protective Case for Raspberry Pi 4

Product Features

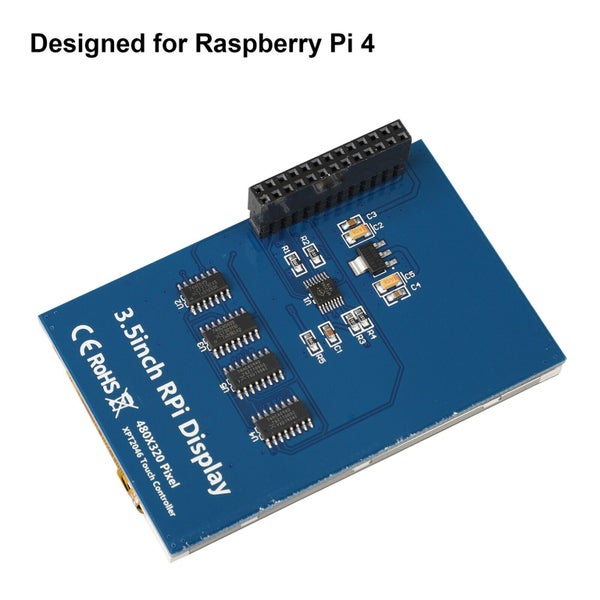

Designed for Raspberry Pi 4.

3.5'' HDMI LCD screen with Touch Function Support systems.

3.5" display monitor input resolution support 480 x 320 to 1920 x 1080(3:2 ratio is better).

Original resolution is 480 x 320 resolution, the screen can just display in 480 x 320 to 1920 x 1080 resolution input.

Support HDMI audio input, stereo 3.5mm audio output.

Plug and Play, easy and convenient to use.

LCD screen include the protective case.

Acrylic Case use the top cover when not installing 3.5" display.

How To Use Step 1, install the official Raspbian or UbuntuMate image

1. Download the latest Raspbian image from the official https://www.raspberrypi.org/downloads/ Download the latest Ubuntu Mate image from the official https://ubuntu-mate.org/download/
2. Format the Micro SD card using SD Formatter,
3. Use Win32DiskImager to burn the official image to the Micro SD card.

Step 2, install the LCD driver Online installation (Raspberry Pi needs to connect to the Internet)

1. Use the Putty connection to log in to the Raspberry Pi system to the user command line (initial username: pi password: raspberry)
2. Execute the following command (after copying, click the right mouse button in the Putty window to paste):

Sudo rm -rf LCD-show

Git clone https://github.com/goodtft/LCD-show.git

Chmod -R 755 LCD-show

Cd LCD-show/

Sudo ./LCD35-show

Note The display needs to be installed with a driver to display, otherwise it will be white.

Product Specification

TypedL?.5" Display Screen Set for Raspberry Pi 4 LCD TypedLšTFT Transmissive InterfacedLšSPI (32MHZ) Support resolutiondL?80 x 320 Back LightdL? White LED Touch chipdLšxpt2046

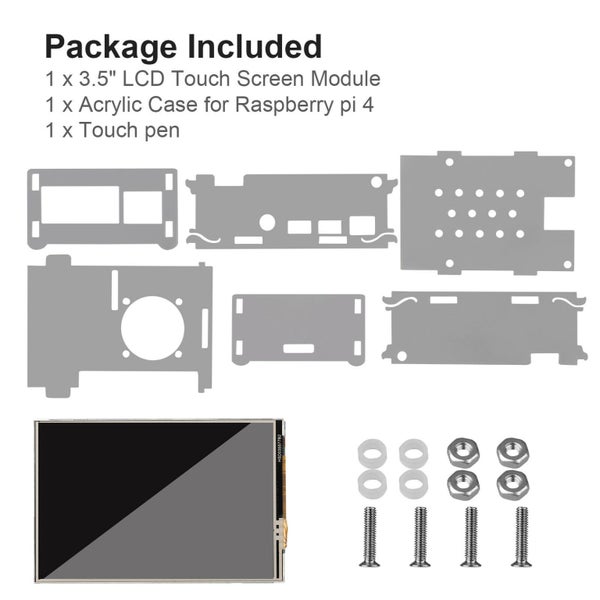

Package Included

1 x 3.5" LCD Touch Screen Module 1 x Acrylic Case for Raspberry pi 4 1 x Touch pen
