>> Current Option: Color: Screen With Case, Package: 863-928MHz >> Dispatch Now. GST, Duties Included. >> 100% Satisfaction Guarantee. >> NZ Local Support. Easy Return.

Current Option: Color: Screen With Case, Package: 863-928MHz

Other Options: Color: Screen With Case, With GPS 2PC, Screen With GPS, Without GPS 2PC, Screen Without GPS... Package: 863-928MHz Other options may lead to different prices.

For option selection, visit URL --> https://www.bigface.nz/item/7739010 Copy the preferred one to the [Delivery Instructions] when buynow on Trademe.

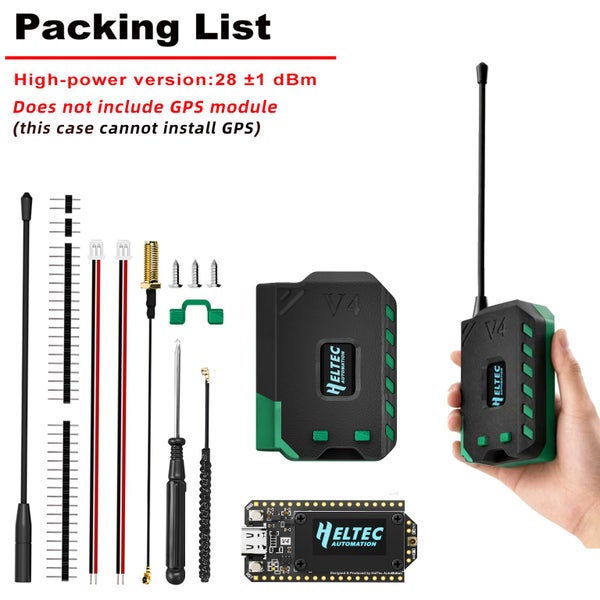

New Meshtastic Heltec V4 0.96inch OLED Solar Powered LoRa 32 Dev-Board GPS ESP32 SX1262 WiFi BLE Low Power For Arduino IoT

SPECIFICATIONS: Accessory Type: Extension Board Battery Included: No Typical Application Fields: Internet Of Things (IoT) High-concerned Chemical: None Compatible With: Lora32 Master Chip: ESP32-S3R2 LoRa Chip: SX-1262 Frequency: 433-510 MHz 863-928 MHz Max. TX Power: 21±1dBm 27±1 DBm Max. Receiving Sensitivity: -137 DBm Wi-Fi: 802.11 B/g/n Up To 150Mbps Bluetooth: Bluetooth LE Bluetooth 5 Bluetooth Mesh OLED: SSD1315(0.96Inch 12864 Resolution) Power Supply: 5V@USB 3.3-4.2V@Battery Operating Temperature: -40-85?(OLED Operating Temperature Dimensions: 51.7 * 25.4 10.7mm

FEATURES: New Meshtastic Dev-Board with 0.96inch OLED, solar powered, for Arduino IoT. Compatible with lora32, featuring ESP32-S3R2 master chip and SX-1262 LoRa chip.

Wide frequency range of 433510 MHz and 863928 MHz. Max. TX power of 21u00b11dBm and 27u00b11 dBm. High receiving sensitivity of -137 dBm.

Equipped with Wi-Fi 802.11 b/g/n up to 150Mbps and Bluetooth LE, Bluetooth 5, and Bluetooth mesh.

SSD1315 OLED with 128*64 resolution. Power supply options of 5V@USB and 3.3-4.2V@Battery. Operating temperature range of -4085u2103 (OLED -4070u00b0C).

T&C APPLY 7739010
