RAM-B-101U RAM Universal Double Ball Mount with Two Round Plates - B Size Medium

Features

• Drill-down mounting solution; choose either round plate featuring the AMPS hole pattern for attachment to compatible device holders

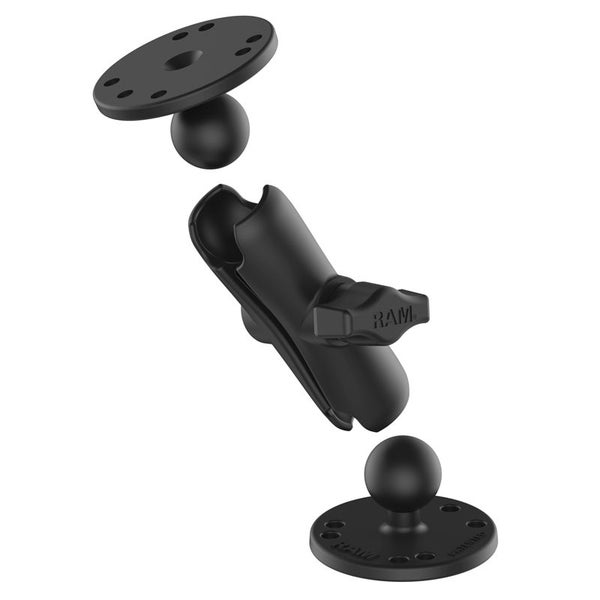

• Includes two round ball bases and B size medium length double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

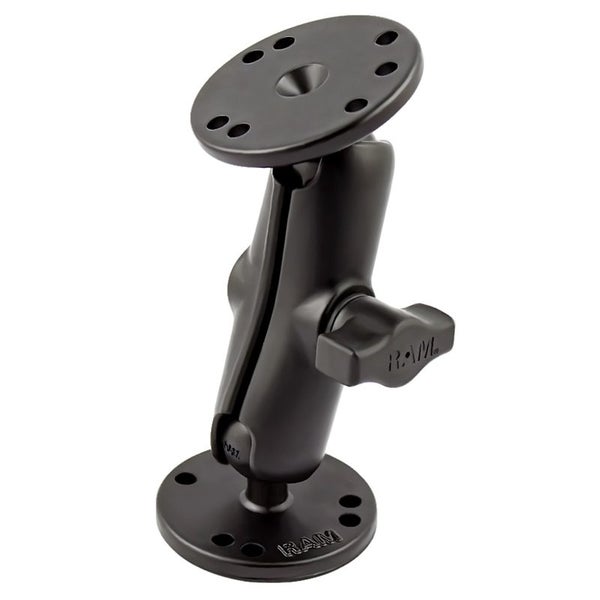

The RAM-B-101U consists of a double socket arm and two 63mm diameter round bases that contain the universal AMPS hole pattern. The mount is designed with a 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the round base adaptor will connect to many RAM cradles, including all iPad cradles.

Specs & Features

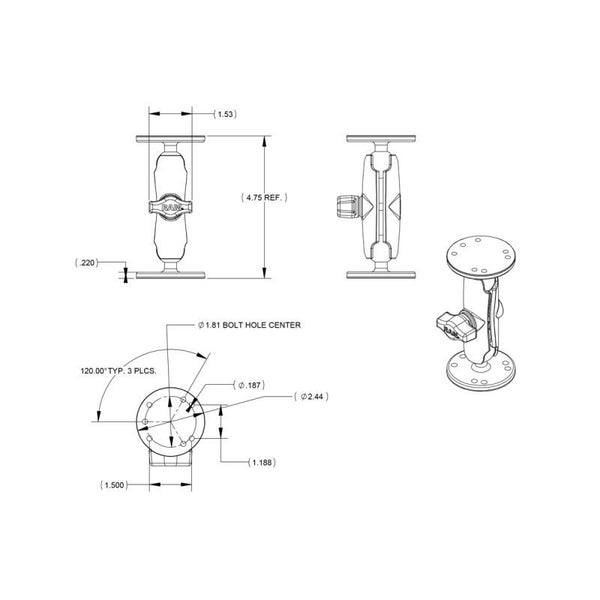

Round Plate Hole Patterns 4-Hole AMPS: 1.181" x 1.496" (30mm x 38mm) 3-Hole AMPS 120- Degree 1.812” (46.0mm)

Material: Powder Coated Marine Grade Aluminium

Ball Size 1" Rubber "B" Ball Size

Overall Height: 127mm (5" )

Socket To Socket Length 76.2mm (3")

Weight 231 grams (0.51 lbs)

YouTube: https://youtu.be/4IpgFq-mGMw

QUESTIONS & ANSWERS Q: What size screws are needed for the holes on this ball plate? A: The most common screw sizes are #8, #10, M4 and M5 screws. However, if you are pairing this with any RAM Holder, the holder will come with the necessary hardware to connect to your mount.
