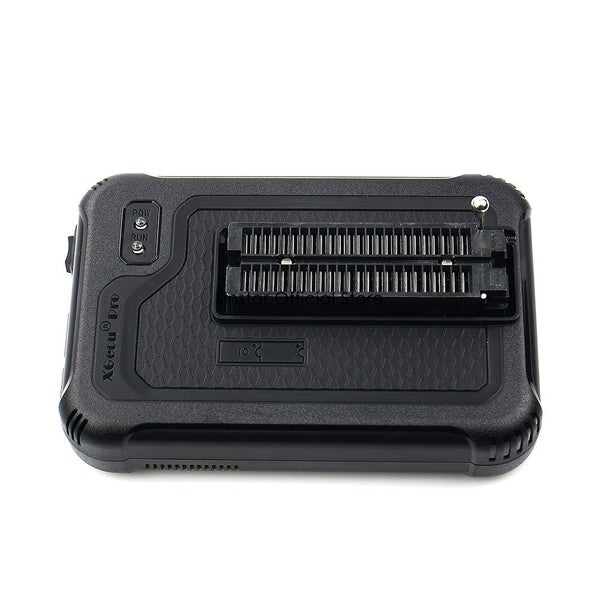

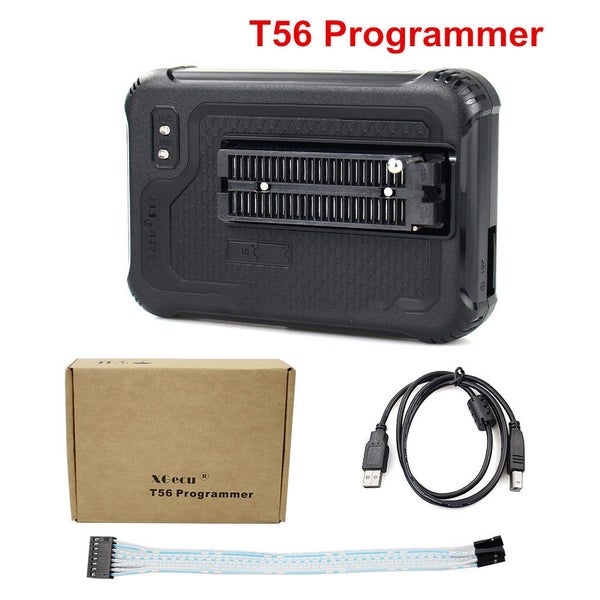

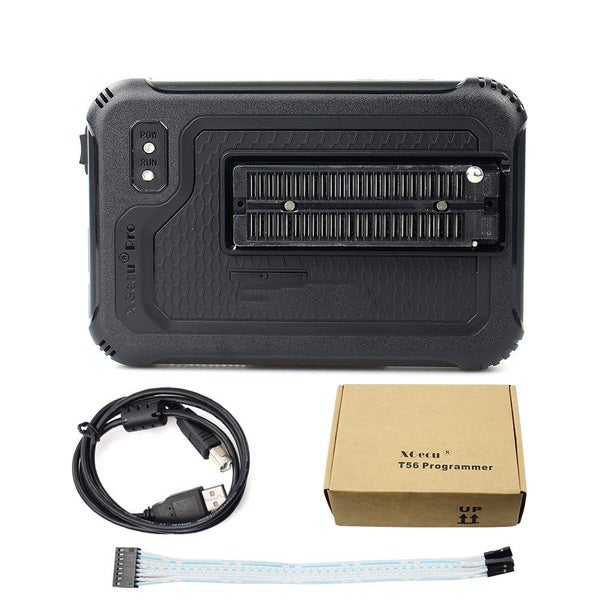

Original Upmely XGecu T56 Universal Programmer Powerful Support Nor Flash / NAND/ EMMC Test Clip Portable High Quality

1. Supports wider chip range, larger capacity, faster speed:

The software interface is clear, smooth and easy to use. more functions. easy to upgrade software .

Ultra-high cost performance, suitable for small batch programming below 5000 , also suitable for developers and professional maintenance personnel.

Support chip model:

24/25/26/93 serial EEPROM, 27/28/29/36/37/39/49/50 EPROM, Paged EPROM,

FLASH memory (NOR, NAND, SPI NAND, EMMC, NVRAM, SRAM, CPLD (GAL), etc.

Support package: add DIP42/PLCC44/SOP44/QFP44/TSOP48/TSOP56/BGA48/BGA63/BGA64 /BGA100/BGA153/BGA162/BGA169/BGA221 on the basis of TL866II.

NAND EMMC supports maximum capacity up to 256G

Support Logic IC Testing

Support VGA_HDMI ISP and VGA Tools

2.Programmer parameters

(1). 32-bit MCU 200MHZ + Xilinx SP6 FPGA structure, USB2.0 HS 480MHZ transmission

(2). 56 pin full drive IO design. All pins have a maximum operating frequency of 50MHZ and high reliability.

(3). Stable and reliable 8Pins in-circuit programming interface, the wire Lehgth is more than 30CM,and it can communicate reliably at 25MHZ.

25 series / EMMC in-circuit programming with a maximum clock frequency of 40MHZ-50MHZ

(4). VCC voltage 1.2-6.5V 64 levels adjustable,

VPP voltage 6.5-25V 64 levels adjustable.

IO communication signal voltage continuously adjustable 1.2V-3.6V

VCC 120MA-320M...
