Description

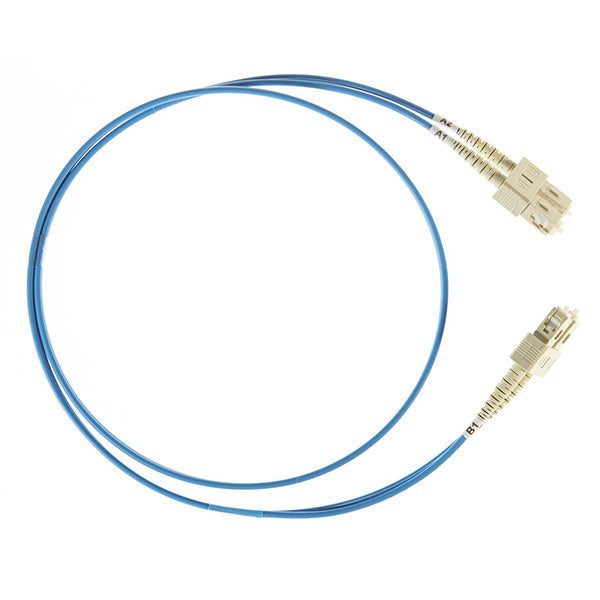

3M SC-SC OM1 MULTIMODE FIBRE OPTIC CABLE: BLUE
Optical fibre cables are the thin, flexible fibres of glass that carry telephone conversations and emails all over the world in a matter of seconds with much less interference than copper cables. Fibre-Optic cables need less amplification to boost signals so they travel better over longer distances.
LC-ST OS1 / OS2 Singlemode Fibre Optic Patch Leads provide connection for high speed and legacy networks like Gigabit Ethernet, Fast Ethernet and Ethernet and are immune to EMI/RFI. They are mainly used on patch panels for the connection between outlets and terminal equipment. The multimode optical fibre cables are manufactured using LSZH cables which conform to IEC, EIA TIA and Telecordia standards.
Applications include:
- Termination enclosure to equipment patching
- Equipment to equipment patching
- Cross-connect patching
FEATURES
- Conforms to ISO/ IEC 11801
- Individually labelled for lead tracing
- Low smoke zero halogen (LSZH) cable
- Manufactured with stringent quality control
- All leads are supplied with a factory test report
- Fibre Optic Cables conform to ITU-651, TIA/EIA492AAAD
- Duplex configurable assemblies for LC, SC, ST & SC/A, as well as MTRJ Patch leads
- All ends are polished and individually inspected for correct polishing
- Supports high-speed multi-channel data, voice & video applications
SPECIFICATION
Crush (N): 1000 Simplex/Duplex: Duplex Strength Member: Aramid Typical Insertion Loss: <0.20 dB Max. Insertion Loss: <0.25 dB Tensile Load: 7.0kg Bend Radius: 3.8cm Operating Temperature (Co): minus 20o to 60o Attenuation (dB): 2.8 @ 850nm/0.8 @ 1310nm Bandwidth OFL (MHz x km): 1500 @ 850nm/500 @ 1310nm/2000 @ 1310nm IL: RL<0.25dB UPC Singlemode: >55dB UPC Multimode: RL>36dB APC: RL>60
FIBRE SPECIFICATIONS:
- OM1 Multimode

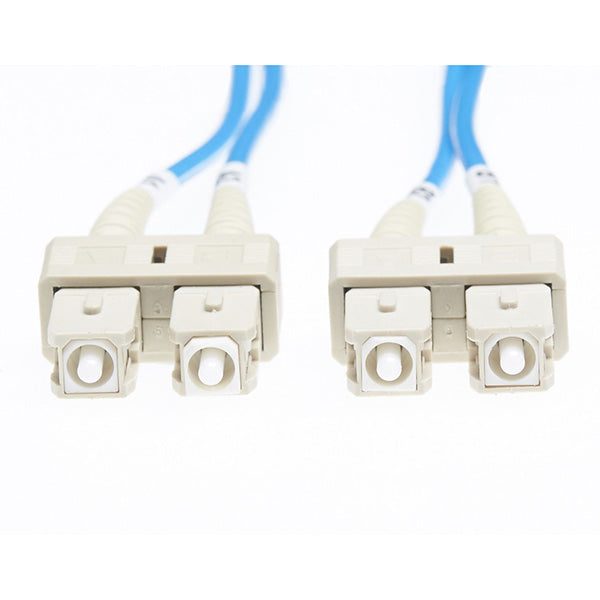

- SC-SC Fibre Termination
- Length: 3m
- Colour: Blue
- 2mm Oversleeving
...
