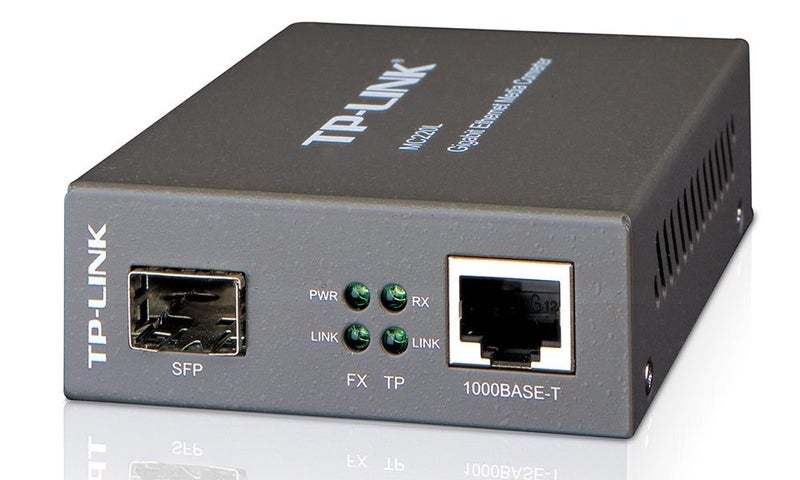

TP-LINK 1000M RJ45 TO 1000M SINGLE-MODE LC FIBER CONVERTER

The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the LC-Type connector. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK's 19" system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber.

FEATURES

Works at 1000Mbps in Full-Duplex mode for both TX port and FX port

Supports auto MDI/MDIX for TX port

Provides switch configuration of Force /Auto transfer mode for FX port

FX port support hot-swappable

Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber

Easy-to-view LED indicators provide status to monitor network activity easily

External power supply

SPECIFICATIONS

Standards and Protocols: IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x

Basic Function:

Full Duplex Flow Control (IEEE 802.3x)

Extends fiber distance up to 0.5km using 50/125um fiber

Ports: 1 x Gigabit SFP port, 1 x 1000M RJ45 port (Auto MDI/MDIX)

Wave Length: Depends on the used SFP module

Network Media 1000BASE-FX: Multi-mode/Single-mode SFP module

Network Media 1000BASE-T: UTP category 5, 5e, 6 cable (maxium 100m), EIA/TIA-568 100Ohm STP (maximum 100m)

LED Indicators: PWR, LINK, RX

Dimensions (WxDxH): 3.7 x 2.9 x 1.1in. (94.5 x 73.0 x 27.0mm)

Power Supply: External Power Adapter

Safety & Emission: FCC, CE...
